08SH-A Series
Manufacturer: Adam Tech
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

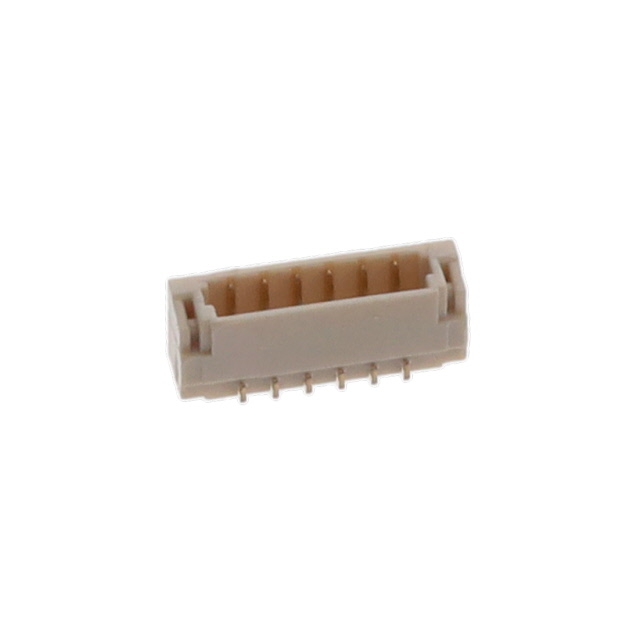

HEADERS & WIRE HOUSINGS CONN HEADER SMD 6POS 0.8MM
| Part | Contact Finish - Mating | Pitch - Mating | Shrouding | Contact Finish Thickness - Mating | Number of Positions Loaded | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Style | Connector Type | Termination | Contact Material | Contact Type | Number of Rows | Insulation Color | Features | Contact Finish - Post | Mounting Type | Contact Shape | Insulation Material | Insulation Height | Fastening Type | Current Rating | Current Rating | Material Flammability Rating | Voltage Rating | Voltage Rating (Type) | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Gold | 0.031 in | Shrouded - 4 Wall | Flash | All | 6 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Phosphor Bronze | Male Pin | 1 | Natural | Pick and Place Solder Retention | Gold | Surface Mount | Square | Thermoplastic | 0.11 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 30 V | AC DC | Flash | Flash |

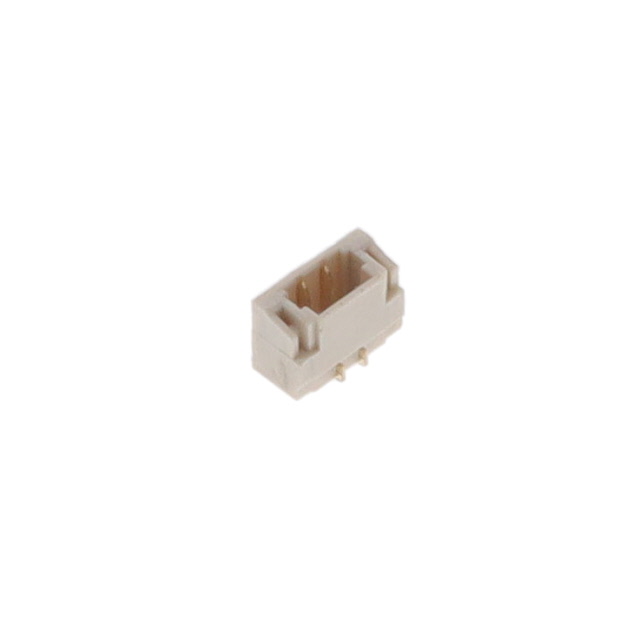

 Adam Tech | Gold | 0.031 in | Shrouded - 4 Wall | Flash | All | 2 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Phosphor Bronze | Male Pin | 1 | Natural | Pick and Place Solder Retention | Gold | Surface Mount | Square | Thermoplastic | 0.11 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 30 V | AC DC | Flash | Flash |
 Adam Tech | Tin | 0.031 in | Shrouded - 4 Wall | All | 4 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Copper Alloy | Male Pin | 1 | Black | Pick and Place Solder Retention | Tin | Surface Mount | Square | Nylon Polyamide (PA) | 0.106 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 250 V | DC | |||

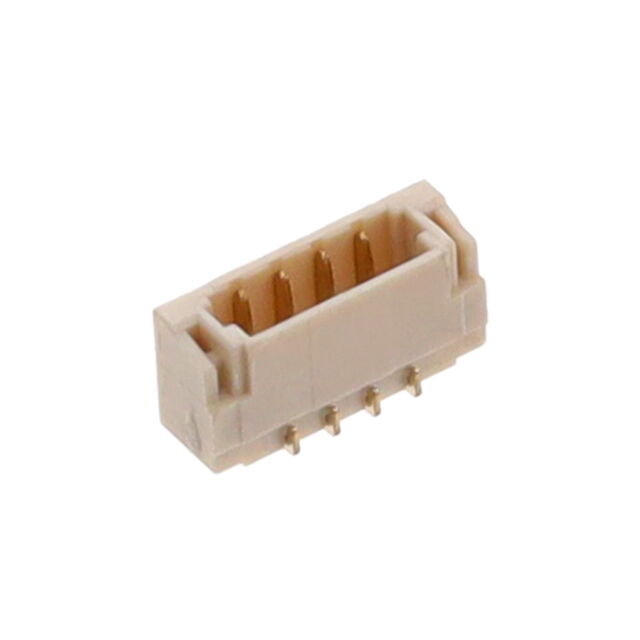

 Adam Tech | Gold | 0.031 in | Shrouded - 4 Wall | Flash | All | 4 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Phosphor Bronze | Male Pin | 1 | Natural | Pick and Place Solder Retention | Gold | Surface Mount | Square | Thermoplastic | 0.11 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 30 V | AC DC | Flash | Flash |

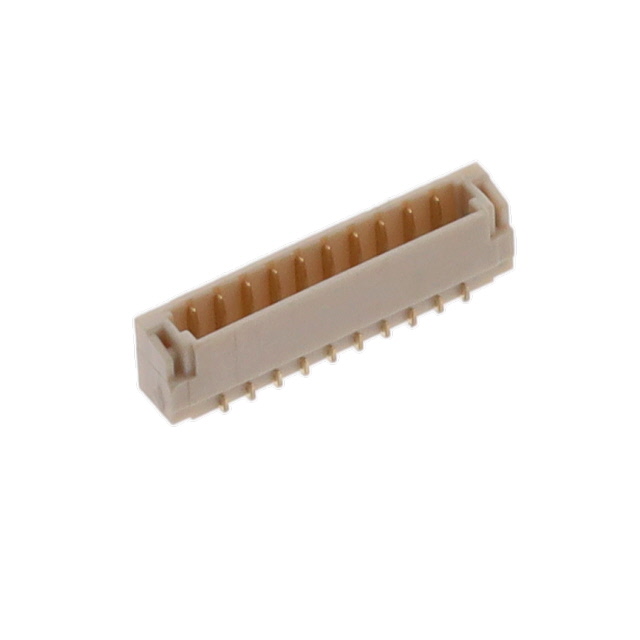

 Adam Tech | Gold | 0.031 in | Shrouded - 4 Wall | Flash | All | 10 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Phosphor Bronze | Male Pin | 1 | Natural | Pick and Place Solder Retention | Gold | Surface Mount | Square | Thermoplastic | 0.11 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 30 V | AC DC | Flash | Flash |

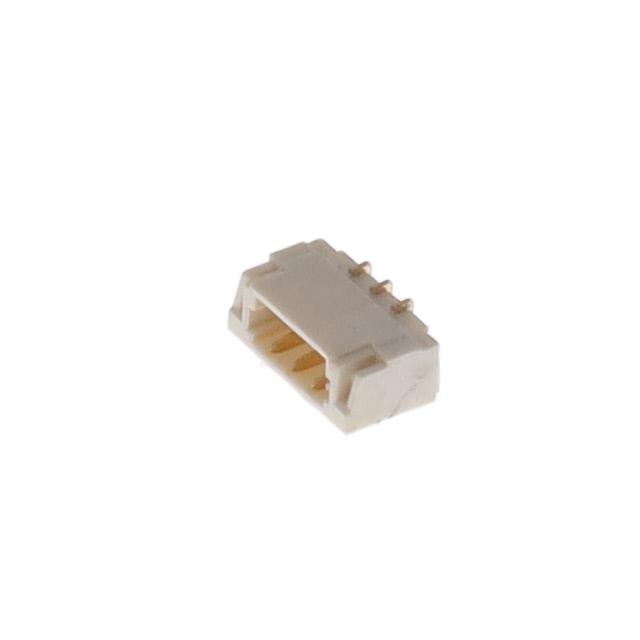

 Adam Tech | Gold | 0.031 in | Shrouded - 4 Wall | Flash | All | 3 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Phosphor Bronze | Male Pin | 1 | Natural | Pick and Place Solder Retention | Gold | Surface Mount | Square | Thermoplastic | 0.11 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 30 V | AC DC | Flash | Flash |
 Adam Tech | Gold | 0.031 in | Shrouded - 4 Wall | Flash | All | 5 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Phosphor Bronze | Male Pin | 1 | Natural | Pick and Place Solder Retention | Gold | Surface Mount | Square | Thermoplastic | 0.11 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 30 V | AC DC | Flash | Flash |

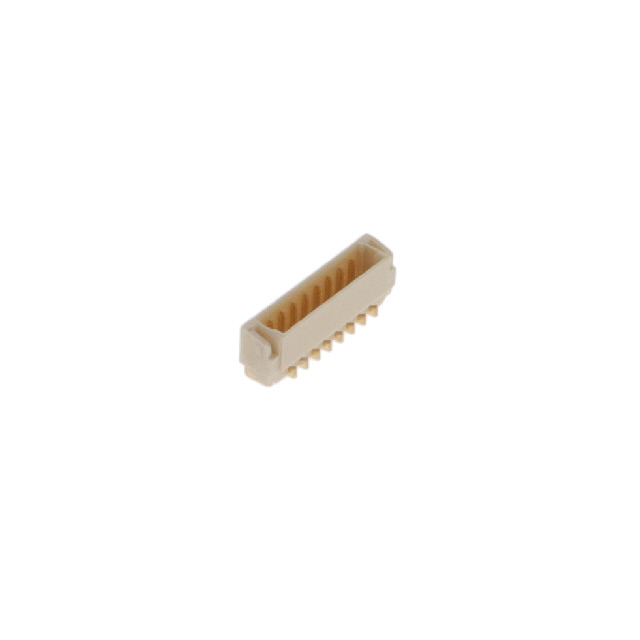

 Adam Tech | Tin | 0.031 in | Shrouded - 4 Wall | All | 8 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Copper Alloy | Male Pin | 1 | Black | Pick and Place Solder Retention | Tin | Surface Mount | Square | Nylon Polyamide (PA) | 0.106 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 250 V | DC | |||

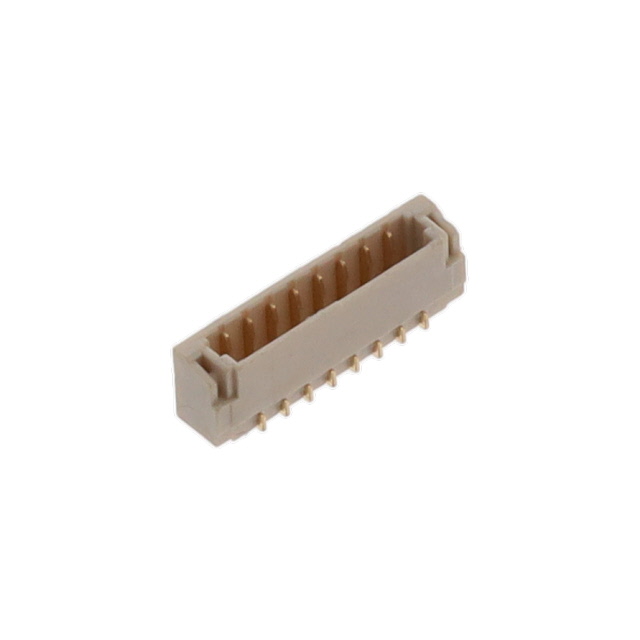

 Adam Tech | Gold | 0.031 in | Shrouded - 4 Wall | Flash | All | 8 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Phosphor Bronze | Male Pin | 1 | Natural | Pick and Place Solder Retention | Gold | Surface Mount | Square | Thermoplastic | 0.11 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 30 V | AC DC | Flash | Flash |

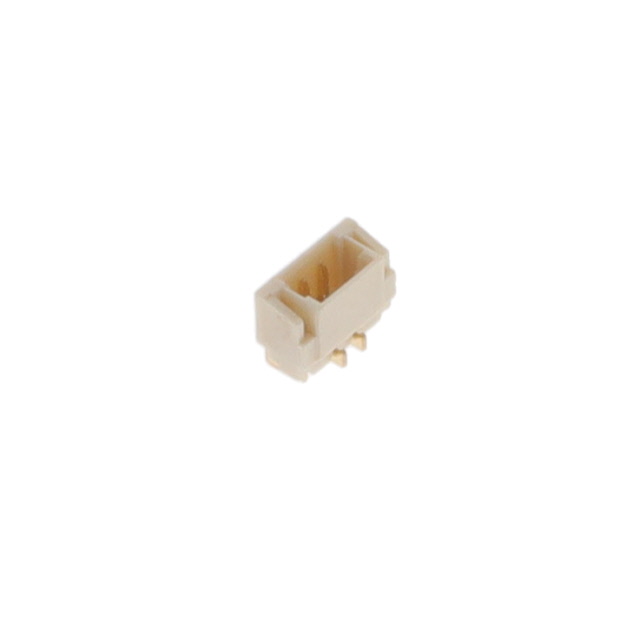

 Adam Tech | Tin | 0.031 in | Shrouded - 4 Wall | All | 2 | 85 °C | -25 °C | Board Cable/Wire | Header | Solder | Copper Alloy | Male Pin | 1 | Black | Pick and Place Solder Retention | Tin | Surface Mount | Square | Nylon Polyamide (PA) | 0.106 in | Friction Lock | 0 A | Varies by Wire Gauge | UL94 V-0 | 250 V | DC |
