TP-DCDC Series

Catalog

DC/DC CONVERTER 56V 50W

Part	Input Connector	Output Connector	Standard Number	Number of Ports	Power (Watts) - Per Port	Data Rate	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Compliance	Mounting Type	Features	Current - Output	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Tycon Systems Inc. TP-DCDC-1248G-HP	RJ45 (Data Power)	RJ45 (Data Power)	60950-1 62368-1	1 2	50 W	10 Mbps 100 Mbps 1000 Mbps	10 V	15 V	CSA FCC TUV	IEEE802.3af IEEE802.3at	Chassis Mount	OCP OVP SCP	900 mA	4.9 in	124.5 mm	38.1 mm	3 in	76.2 mm	1.5 in	56 V	-30 ░C	60 °C	75 %	Passive Injector
Tycon Systems Inc. TP-DCDC-2448GD-HP	RJ45 (Data Power)	RJ45 (Data Power)	60950-1	2	35 W	10 Mbps 100 Mbps 1000 Mbps	18 VDC	36 V	CSA FCC TUV	IEEE802.3af IEEE802.3at	Chassis Mount	OCP OVP SCP	625 MA	4.9 in	124.5 mm	38.1 mm	3 in	76.2 mm	1.5 in	56 V	-30 ░C	60 °C	75 %	Passive Injector
Tycon Systems Inc. TP-DCDC-4856GD-VHP			60950-1	2	70 W		36 V	72 V	CSA FCC TUV	IEEE802.3at	Chassis Mount	OCP OTP OVP SCP	1.25 A	4.9 in	124.5 mm	38.1 mm	3 in	76.2 mm	1.5 in	56 V	-30 ░C	60 °C	80 %	Passive Injector
Tycon Systems Inc. TP-DCDC-1224-HP	RJ45 (Data Power)	RJ45 (Data Power)	60950-1	2	35 W		10 V	15 V	CSA FCC TUV	IEEE802.3at	Chassis Mount	OCP OVP SCP	1.46 A	4.9 in	124.5 mm	38.1 mm	3 in	76.2 mm	1.5 in	24 V	-30 ░C	60 °C	75 %	Passive Injector
Tycon Systems Inc. TP-DCDC-4848GD-HP			60950-1	2	35 W	10 Mbps 100 Mbps 1000 Mbps	36 V	72 V	CSA FCC TUV	IEEE802.3af IEEE802.3at	Chassis Mount	OCP OVP SCP		4.9 in	124.5 mm	38.1 mm	3 in	76.2 mm	1.5 in	56 V	-30 ░C	60 °C	75 %	Passive Injector
Tycon Systems Inc. TP-DCDC-4824G	RJ45 (Data Power)	RJ45 (Data Power)	60950-1	2	24 W	10 Mbps 100 Mbps 1000 Mbps	36 V	72 V	CSA FCC TUV	IEEE802.3af	Chassis Mount	OCP OVP SCP	1 A		86.4 mm	35.6 mm		76.2 mm		24 V	-30 ░C	60 °C	75 %	Passive Injector	3 "	1.4 "	3.4 in
Tycon Systems Inc. TP-DCDC-1248GD-HP	RJ45 (Data Power)	RJ45 (Data Power)	60950-1	2	35 W	10 Mbps 100 Mbps 1000 Mbps	10 V	15 V	CSA FCC TUV	IEEE802.3af IEEE802.3at	Chassis Mount	OCP OVP SCP			125 mm					56 V	-30 ░C	60 °C	75 %	Passive Injector	2.95 "	1.5 in	4.92 in	75 mm	38 mm

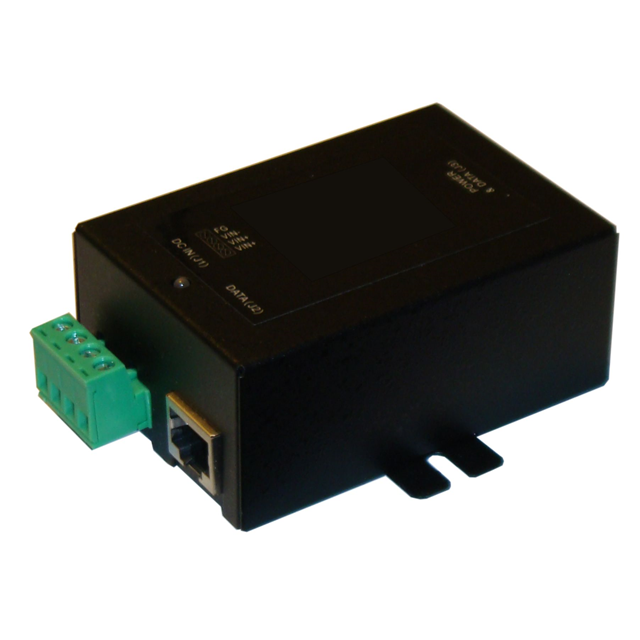

Tycon Systems Inc. TP-DCDC-1248GD-M			60950-1	1	17 W	10 Mbps 100 Mbps 1000 Mbps	9 V	36 V	CSA FCC TUV	IEEE802.3af	Chassis Mount	OCP OVP SCP	350 mA		86.4 mm	35.6 mm		76.2 mm		48 V	-30 ░C	60 °C	75 %	Passive Injector	3 "	1.4 "	3.4 in
Tycon Systems Inc. TP-DCDC-4848-HP	RJ45 (Data Power)	RJ45 (Data Power)	60950-1	2	35 W		36 V	72 V	CSA FCC TUV	IEEE802.3at	Chassis Mount	OCP OVP SCP		4.9 in	124.5 mm	38.1 mm	3 in	76.2 mm	1.5 in	56 V	-30 ░C	60 °C	75 %	Passive Injector
Tycon Systems Inc. TP-DCDC-4856G-VHP			60950-1	2	70 W		36 V	72 V	CSA FCC TUV		Chassis Mount	OCP OVP SCP	1.25 A	4.9 in	124.5 mm	38.1 mm	3 in	76.2 mm	1.5 in	56 V	-40 C	70 °C	80 %	Passive Injector
