S8VK-G015 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
AC/DC DIN RAIL SUPPLY 12V 15W
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Isolation | Number of Outputs | Efficiency | Voltage - Output 1 | Features | Current - Output (Max) [Max] | Approval Agency | Input Type | Power (Watts) | Applications | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

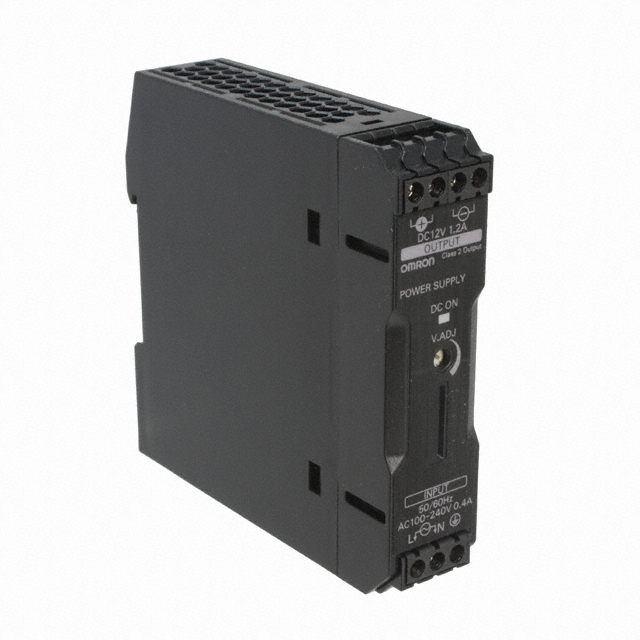

 Omron Electronics Inc-EMC Div | 3.54 " | 0.89 in | 90 mm | 90 mm | 3.54 in | 22.5 mm | 3000 V | 1 | 77 % | 12 V | Adjustable Output PFC Universal Input | 1.2 A | CE cULus cURus TUV | AC | 15 W | ITE (Commercial) | 85 VAC | 264 VAC | ||

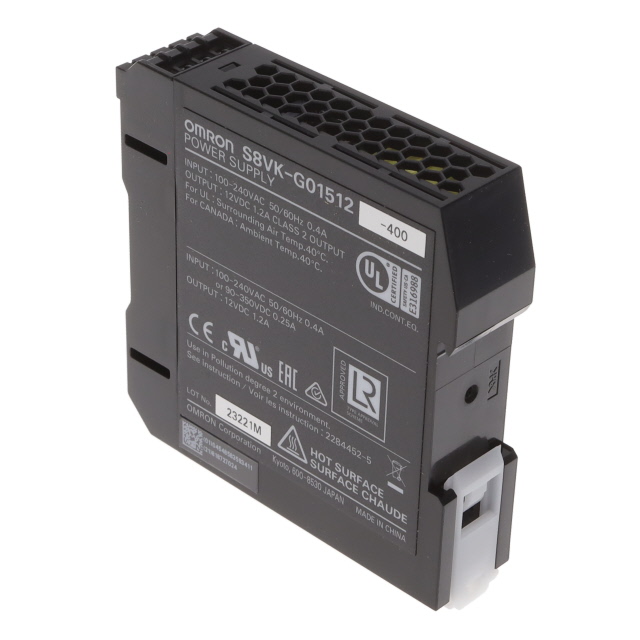

 Omron Electronics Inc-EMC Div | 3.54 " | 0.89 in | 90 mm | 90 mm | 3.54 in | 22.5 mm | 3000 V | 1 | 77 % | 12 V | Adjustable Output Load Sharing Universal Input | 1.2 A | CE cULus cURus VDE | AC | 15 W | ITE (Commercial) | 85 VAC | 264 VAC | -40 °C | 75 ¯C |

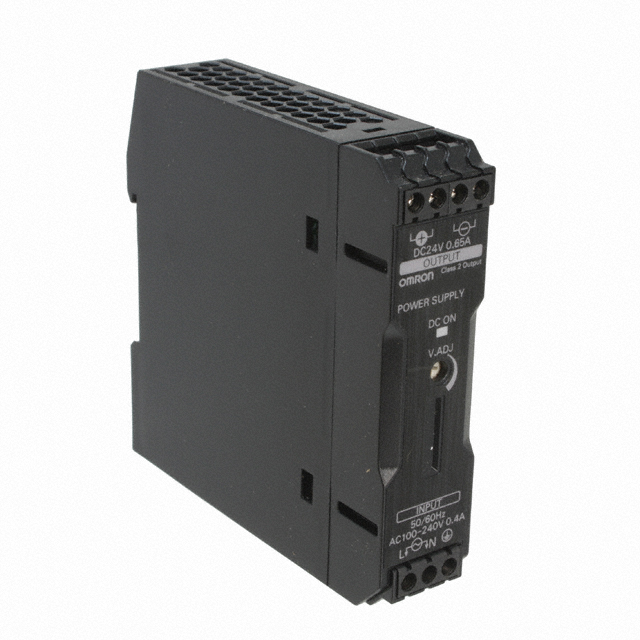

 Omron Electronics Inc-EMC Div | 3.54 " | 0.89 in | 90 mm | 90 mm | 3.54 in | 22.5 mm | 3000 V | 1 | 80 % | 24 V | Adjustable Output Load Sharing Universal Input | 650 mA | CE cULus cURus VDE | AC | 15 W | ITE (Commercial) | 85 VAC | 264 VAC | -40 °C | 75 ¯C |
