RF1-1F Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPDT 10A 125V
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Switch Function | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating - DC | Color - Actuator/Cap | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Mounting Type | Actuator Type | Quick Connect Size (0.187") | Termination Style | Voltage Rating - AC | Approval Agency | Current Rating | Actuator Marking | Circuit | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

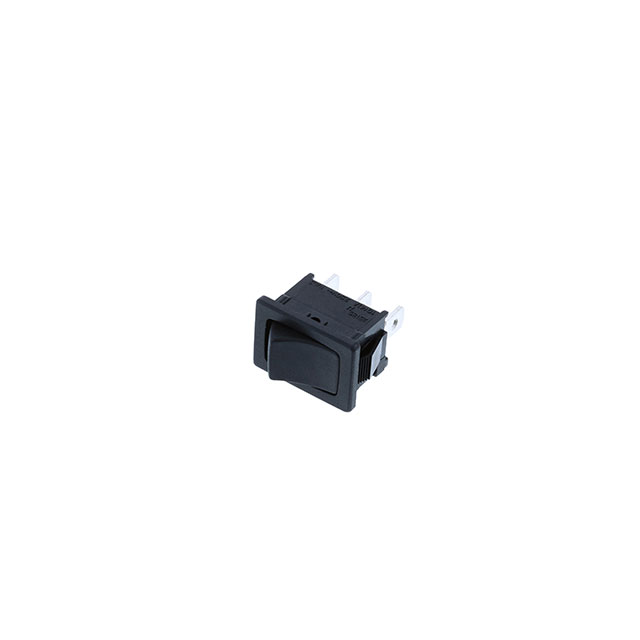

 Switch Components | 6000 Cycles | 10000 Cycles | On-Off-On | 85 °C | -25 °C | 12 V | Black | 13 mm | Rectangular | 19.2 mm | Panel Mount Snap-In | Concave (Curved) | 0.187 in | Quick Connect | 125 V | CSA cURus ENEC | 16 A 16 A | No Marking | SPDT | |
 Switch Components | On-Off-On | 85 °C | -25 °C | Black | 13 mm | Rectangular | 19.2 mm | Panel Mount Snap-In | Concave (Curved) | 0.187 in | Quick Connect | 125 V | CSA cURus ENEC | 16 A | O | SPDT | IP40 | |||

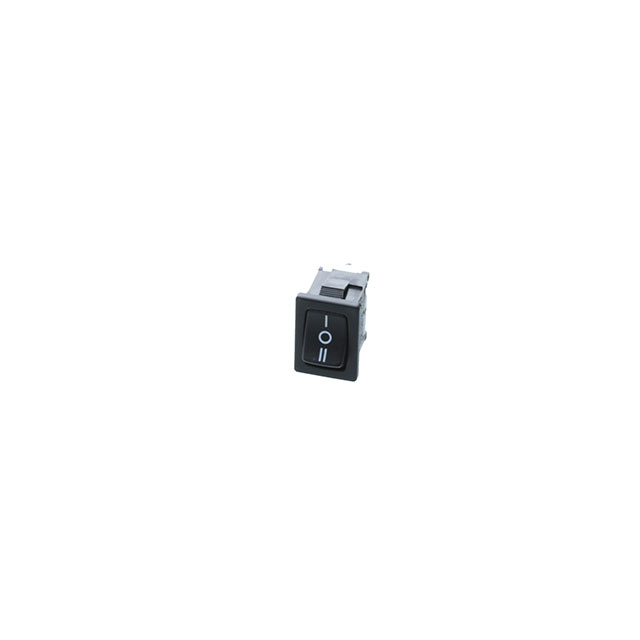

Switch Components | 6000 Cycles | 10000 Cycles | On-Off-On | 85 °C | -25 °C | 12 V | Black | 13 mm | Rectangular | 19.2 mm | Panel Mount Snap-In | Concave (Curved) | 0.187 in | Quick Connect | 125 V | CSA cURus ENEC | 16 A 16 A | I O II | SPDT |
