048201 Series
Manufacturer: Molex
Beta
⌘K
CONN D-SUB RCPT 9POS R/A SLDR
| Part | Number of Positions | Backset Spacing | Backset Spacing | Features | Flange Feature | Voltage Rating | Contact Finish Thickness | Termination | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Number of Rows | Mounting Type | Contact Type | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Material Flammability Rating | Connector Style | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

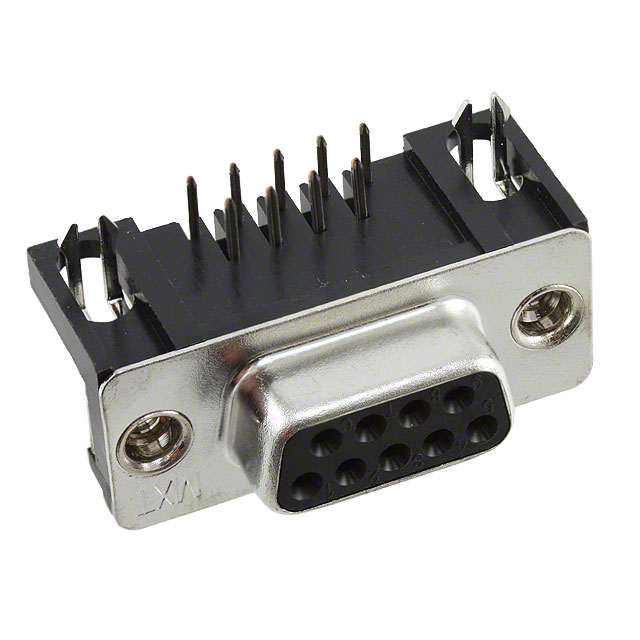

 Molex | 9 | 8.08 mm | 0.318 " | Board Lock Shielded | Housing/Shell (Unthreaded) | 300 VDC | Flash | Solder | Phosphor Bronze | 85 °C | -55 °C | Polyester Glass Filled | 2 | Board Edge Right Angle Through Hole | Signal | Black | DE E | 1 | Receptacle Female Sockets | UL94 V-0 | D-Sub | Gold | ||

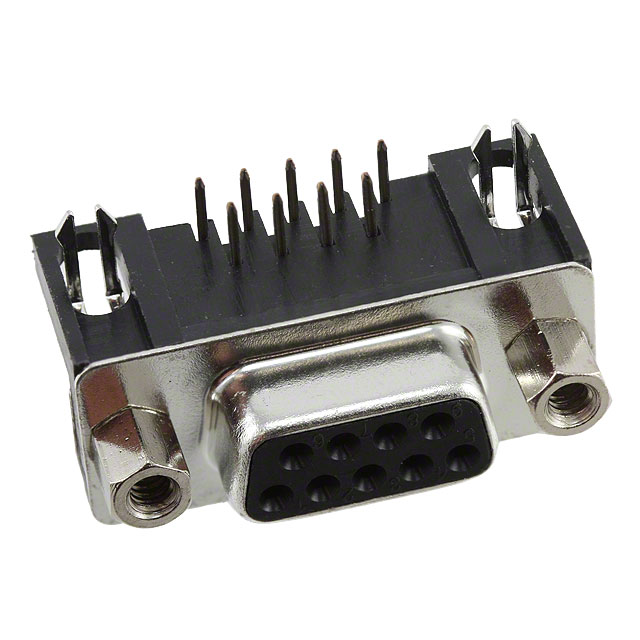

 Molex | 9 | 8.08 mm | 0.318 " | Board Lock Shielded | Housing/Shell (4-40) | 300 VDC | Solder | Phosphor Bronze | 85 °C | -55 °C | Polyester Glass Filled | 2 | Board Edge Right Angle Through Hole | Signal | Black | DE E | 1 | Receptacle Female Sockets | UL94 V-0 | D-Sub | Gold | 0.76 Ám | 30 Áin | |
Molex |
