9611 Series
Manufacturer: Belden Inc.
Beta
⌘K

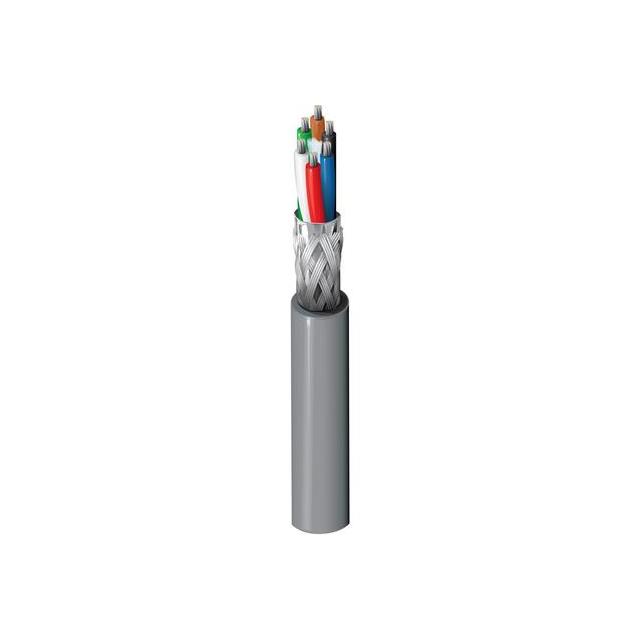

CABLE 6CON 24AWG CHROM SHLD
| Part | Shield Coverage | Shield Material | Voltage | Conductor Material | Usage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Number of Conductors | Shield Type | Cable Type | Wire Gauge | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Copper Tinned | Computer | Poly-Vinyl Chloride (PVC) | 5.72 mm | 0.225 " | 80 °C | -30 ░C | Chrome | 6 | Braid Foil | Multi-Conductor | 24 AWG | 152.4 m | 500 ft | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 0.035 in | 0.889 mm | ||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Copper Tinned | Computer | Poly-Vinyl Chloride (PVC) | 5.72 mm | 0.225 " | 80 °C | -30 ░C | Chrome | 6 | Braid Foil | Multi-Conductor | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 0.035 in | 0.889 mm | 100 ft | 30.5 m |
