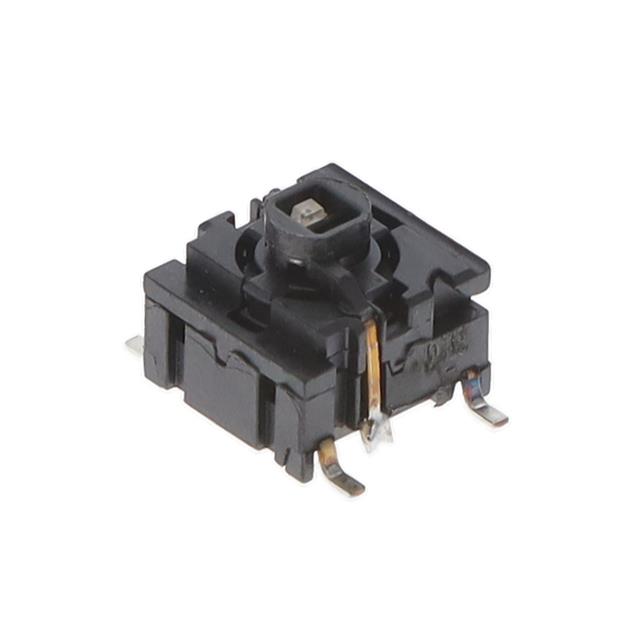

5GSH Series
Manufacturer: APEM Inc.
Beta
⌘K
MEC SWITCH 10G ROHS COMPLIANT: YES
| Part | Switch Travel | Actuator Material | Mechanical Life | Contact Rating @ Voltage | Termination Style | Actuator Orientation | Switch Function | Mounting Type | Outline [x] | Outline [y] | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Features | Illumination Voltage (Nominal) | Actuator Type | Illumination | Circuit | Operating Force | Actuator Height off PCB, Vertical [z] | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 1 mm | Polyphenylene Sulfide (PPS) | 10000000 Cycles | 0.05 A 24 VDC | Gull Wing | Top Actuated | Off-Mom | Surface Mount | 10.1 mm | 10.1 mm | IP67 - Dust Tight Waterproof | 160 °C | -40 C | Sealed - Flux Protection | 2.2 VDC | Plunger for Cap | Illuminated | SPST-NO | 650 gf | 6.4 mm | Green LED |
