IntraSense Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

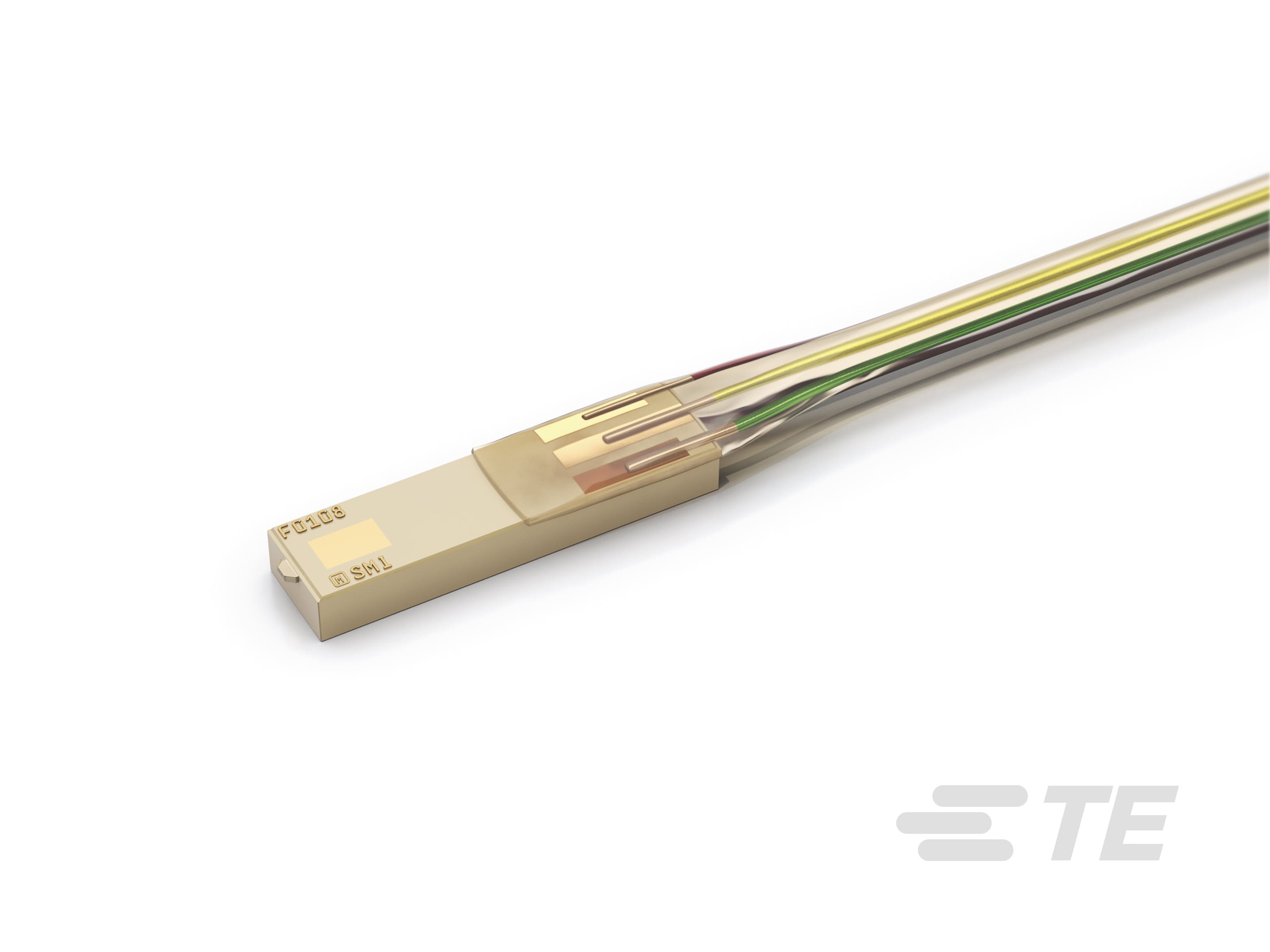

INTRASENSE 3-WIRES 100CM

Part	Output	Port Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Accuracy	Maximum Pressure	Maximum Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Termination Style	Applications	Voltage - Supply	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Min]	Mounting Type
TE Connectivity AMP Connectors SMI-1A-48-100-BAUU
TE Connectivity AMP Connectors SMI-1B-48-180-BMAR	16 b	No Port	Amplified Output Temperature Compensated	-10 °C	60 °C	168 kPa	24.37 PSI	61 kPa	8.85 PSI	0.02 % FS	77.35 PSI	533.29 kPa	4.75 V	5.25 V	Digital
TE Connectivity AMP Connectors SMI-1B-48-060-BAUU
TE Connectivity AMP Connectors SMI-1A-48-060-BMAR	16 b	No Port	Amplified Output Temperature Compensated	-10 °C	60 °C	168 kPa	24.37 PSI	61 kPa	8.85 PSI	0.02 % FS	77.35 PSI	533.29 kPa	4.75 V	5.25 V	Digital
TE Connectivity AMP Connectors SMI-1A-48-060-BMAP	16 b	No Port	Amplified Output Temperature Compensated	-10 °C	60 °C	168 kPa	24.37 PSI	61 kPa	8.85 PSI	0.02 % FS	77.35 PSI	533.29 kPa	3 V	3.6 V	Digital
TE Connectivity AMP Connectors SMI-1B-48-060-BMAP	16 b	No Port	Amplified Output Temperature Compensated	-10 °C	60 °C	168 kPa	24.37 PSI	61 kPa	8.85 PSI	0.02 % FS	77.35 PSI	533.29 kPa	3 V	3.6 V	Digital
TE Connectivity AMP Connectors SMI-1B-48-100-BMAP	16 b	No Port	Amplified Output Temperature Compensated	-10 °C	60 °C	168 kPa	24.37 PSI	61 kPa	8.85 PSI	0.02 % FS	77.35 PSI	533.29 kPa	3 V	3.6 V	Digital
TE Connectivity AMP Connectors SMI-1B-48-100-BAUU
TE Connectivity AMP Connectors SMI-1B-48-060-BMAR	16 b	No Port	Amplified Output Temperature Compensated	-10 °C	60 °C	168 kPa	24.37 PSI	61 kPa	8.85 PSI	0.02 % FS	77.35 PSI	533.29 kPa	4.75 V	5.25 V	Digital
TE Connectivity AMP Connectors SMI-1A-48-180-BBUU		No Port		10 °C	60 °C		24.36 PSI 167.98 kPa		8.9 PSI 61.33 kPa						Analog Voltage	Cable	Board Mount	2.4 V	Module	77.35 PSI 533.29 kPa	-53.33 kPa -7.73 PSI	Chassis Mount
