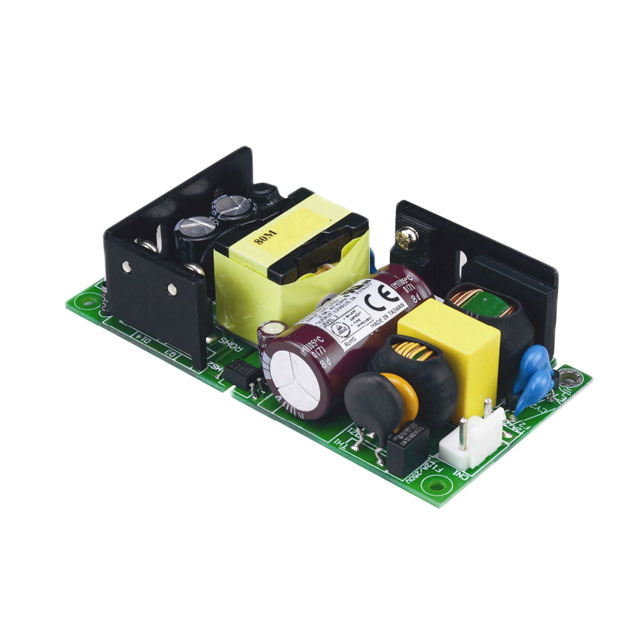

CFM80S Series
Switching Power Supplies AC-DC Module, 80 Watt, Open Frame, 90-264VAC Input, 48VDC Output
Manufacturer: Cincon Electronics Co. LTD
Catalog
Switching Power Supplies AC-DC Module, 80 Watt, Open Frame, 90-264VAC Input, 48VDC Output
Switching Power Supplies AC-DC Module, 80 Watt, Open Frame, 90-264VAC Input, 48VDC Output
Switching Power Supplies AC-DC Module, 80 Watt, Open Frame, 90-264VAC Input, 48VDC Output
Switching Power Supplies AC-DC Module, 80 Watt, Open Frame, 90-264VAC Input, 48VDC Output
| Part | Power (Watts) | Number of Outputs | Features | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Isolation | Type | Applications | Current - Output 1 | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | 80 W | 1 | Universal Input | Chassis Mount | 2 in | 50.8 mm | 27.1 mm | 1.07 in | 101.6 mm | 4 " | 264 VAC | 90 VAC | 48 V | 80 ¯C | -20 °C | 90 % | 4.242 kV | Open Frame | ITE (Commercial) | 1.67 A | CE cURus FCC TUV |
