RAC04-05 Series

AC/DC Power Modules 4W AC/DC 3kV REG 90-305Vin 12Vout

Manufacturer: Recom Power

Catalog

AC/DC Power Modules 4W AC/DC 3kV REG 90-305Vin 12Vout

Catalog

AC/DC Power Modules 4W AC/DC 3kV REG 90-305Vin 12Vout

Part	Weight	Weight	Line Regulation	Load Regulation	Applications	Efficiency	Features	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Type	Voltage - Output 1	Power (Watts)	Approval Agency	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Package / Case	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]

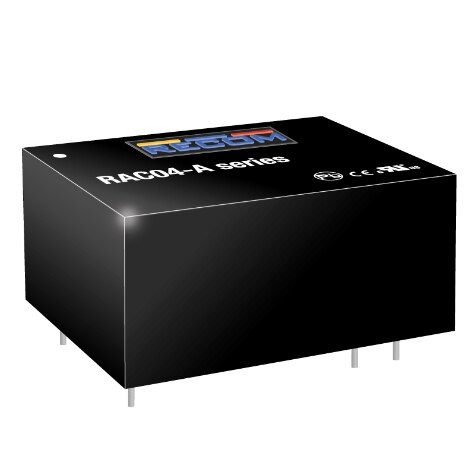

Recom Power RAC04-05SA	26.31 g	0.058 lb	0.2 %	0.5 %	ITE (Commercial)	72 %	Universal Input	60950-1	264 VAC	90 VAC	Enclosed	5 V	4 W	CE cULus EN	Through Hole	0.8 A	1.44 in	17.6 mm	0.69 in	1.07 in	36.7 mm	27 mm	1	7-DIP Module

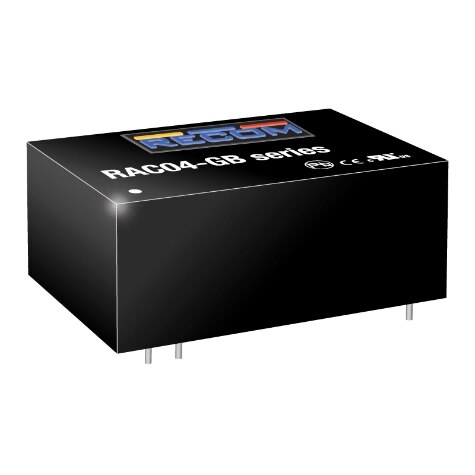

Recom Power RAC04-05SGB			0.5 %	0.5 %	Household Appliances ITE (Commercial)	72 %			305 VAC	85 VAC	Enclosed	5 V	4 W	CE cURus	Through Hole	0.8 A	1.46 in	15 mm	0.59 in	0.94 in	37 mm	24 mm	1	16-DIP Module 5 Leads	0.044 lb	19.96 g	-40 °C	85 °C
Recom Power RAC04-05SA/277	26.31 g	0.058 lb	0.2 %	0.5 %	ITE (Commercial)	72 %	Universal Input	60950-1	305 VAC	90 VAC	Enclosed	5 V	4 W	CE cULus EN	Through Hole	0.8 A	1.44 in	17.6 mm	0.69 in	1.07 in	36.7 mm	27 mm	1	7-DIP Module 6 Leads

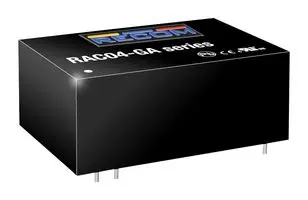

Recom Power RAC04-05SGA			0.5 %	0.5 %	Household Appliances ITE (Commercial)	72 %			305 VAC 430 VDC	85 VAC 120 VDC	Enclosed	5 V	4 W	CE cURus EAC FCC	Through Hole	0.8 A	1.46 in	15 mm	0.59 in	0.94 in	37 mm	24 mm	1	16-DIP Module 5 Leads	0.044 lb	19.96 g	-40 °C	85 °C
Recom Power RAC04-05SC	29.94 g	0.066 lb	0.5 %	1.5 %	ITE (Commercial)	72 %	Universal Input	60950-1	264 VAC	80 VAC	Enclosed	5 V	4 W	CE cULus	Through Hole	0.8 A	1.49 in	16.4 mm	0.65 in	0.94 in	37.8 mm	23.9 mm	1	16-DIP Module 5 Leads			-25 °C	85 °C
