CYT4DNJ Series

Manufacturer: INFINEON

Catalog

MCU 32-BIT ARM CORTEX M0+/ARM CORTEX M7 RISC 6336KB FLASH 3.3V/5V 327-PIN BGA TRAY

Part	Package / Case	Peripherals	Supplier Device Package	Speed	Mounting Type	Core Processor	Program Memory Size	EEPROM Size	Number of I/O	Program Memory Type	Connectivity	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	RAM Size	Core Size	Oscillator Type	Core Size	Data Converters

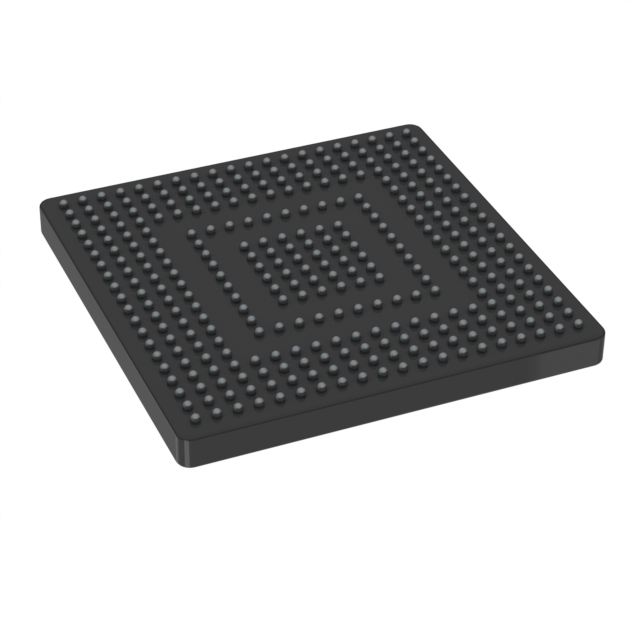

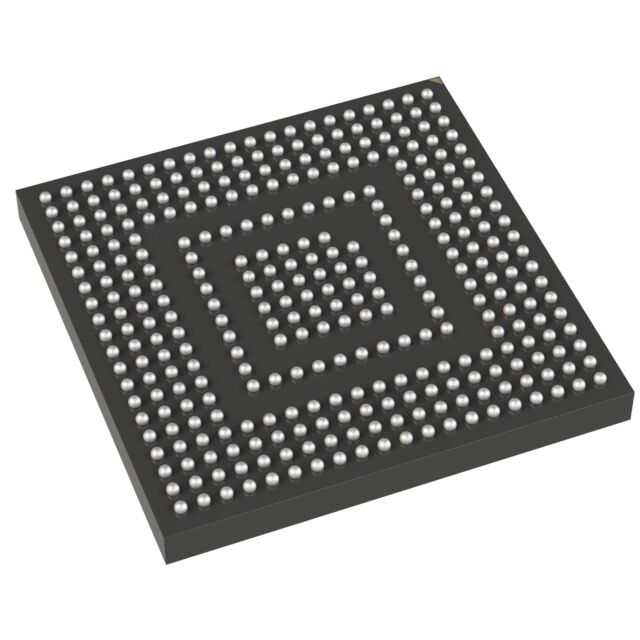

INFINEON CYT4DNJBRCQ1BZSGS	327-BGA 327-LFBGA	DMA I2S LVD Temp Sensor WDT	327-BGA 327-FBGA (17x17)	320 MHz	Surface Mount	ARM® Cortex®-M0+ ARM® Cortex®-M7F	6.188 MB	128 K	168	FLASH	DMA I2S LVD Temp Sensor WDT	5.5 V	2.7 V	-40 °C	105 °C	640 K	32-Bit Quad-Core
INFINEON CYT4DNJBBCQ1BZSGS	327-LFBGA	DMA I2S LVD Temp Sensor WDT	327-FBGA (17x17)	100 MHz 320 MHz	Surface Mount	ARM® Cortex®-M0+ ARM® Cortex®-M7F	6.19 MB	128 K	168	FLASH	CANbus Ethernet I2C LINbus SPI UART/USART	5.5 V	2.7 V	-40 °C	105 °C	640 K	Tri-Core	External Internal	32 Bit	A/D 48x12b SAR
INFINEON CYT4DNJBHCQ1BZSGST	327-LFBGA	DMA I2S LVD Temp Sensor WDT	327-FBGA (17x17)	100 MHz 320 MHz	Surface Mount	ARM® Cortex®-M0+ ARM® Cortex®-M7F	6.19 MB	128 K	168	FLASH	CANbus Ethernet I2C LINbus SPI UART/USART	5.5 V	2.7 V	-40 °C	105 °C	640 K	Tri-Core	External Internal	32 Bit	A/D 48x12b SAR
INFINEON CYT4DNJBRCQ1BZSGST	327-BGA 327-LFBGA	DMA I2S LVD Temp Sensor WDT	327-BGA 327-FBGA (17x17)	320 MHz	Surface Mount	ARM® Cortex®-M0+ ARM® Cortex®-M7F	6.188 MB	128 K	168	FLASH	DMA I2S LVD Temp Sensor WDT	5.5 V	2.7 V	-40 °C	105 °C	640 K	32-Bit Quad-Core
INFINEON CYT4DNJBJCQ1BZSGST	327-LFBGA	DMA I2S LVD Temp Sensor WDT	327-FBGA (17x17)	100 MHz 320 MHz	Surface Mount	ARM® Cortex®-M0+ ARM® Cortex®-M7F	6.19 MB	128 K	168	FLASH	CANbus Ethernet I2C LINbus SPI UART/USART	5.5 V	2.7 V	-40 °C	105 °C	640 K	Tri-Core	External Internal	32 Bit	A/D 48x12b SAR
