KYC Series

Manufacturer: Chemi-Con

Catalog

CAP ALUMINUM LYTIC 2400UF 35V 20% (12.5 X 30MM) RADIAL 5MM 0.029 OHM 3.12A 5000H 105°C BULK AUTOMOTIVE AEC-Q200

Part	Lifetime @ Temp.	Ripple Current @ Low Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Package / Case	Lead Spacing	Lead Spacing	Ratings	Applications	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKYC350ELL242MK30S	5000 Hrs	2.34 A	2.4 mF	0.492 in	12.5 mm	Polar	Through Hole	-40 C	105 ░C	3.12 A	Can Radial	0.197 "	5 mm	AEC-Q200	Automotive	35 V	1.24 in	31.5 mm	20 %
Chemi-Con EKYC250ELL472MM20S	5000 Hrs	2.295 A	4700 µF	0.709 in	18 mm	Polar	Through Hole	-40 C	105 ░C	2.7 A	Can Radial	0.295 in	7.5 mm	AEC-Q200	Automotive	25 VDC	0.846 "	21.5 mm	20 %	37 mOhm

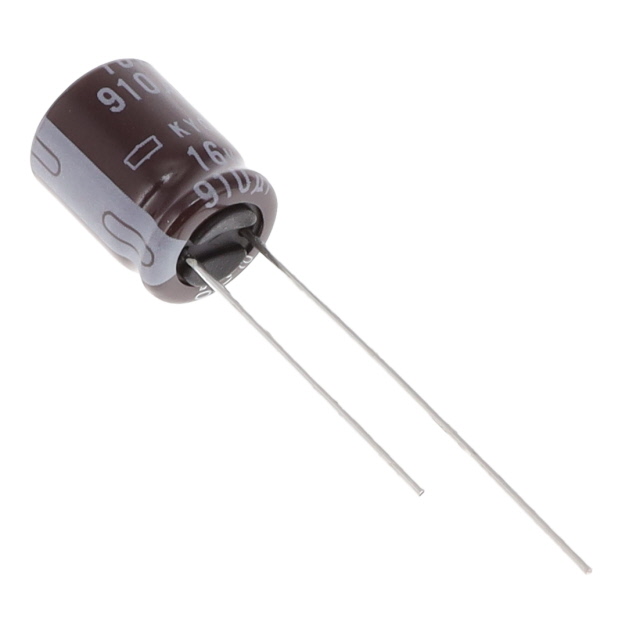

Chemi-Con EKYC160ELL911MJC5S	3000 Hrs	672 mA	910 µF	0.394 in	10 mm	Polar	Through Hole	-40 C	105 ░C	1.12 A	Can Radial	0.197 "	5 mm	AEC-Q200	Automotive	16 V	0.551 in	14 mm	20 %	140 mOhm
Chemi-Con EKYC250ELL392MK30S	5000 Hrs	2.34 A	3900 µF	0.492 in	12.5 mm	Polar	Through Hole	-40 C	105 ░C	3.12 A	Can Radial	0.197 "	5 mm	AEC-Q200	Automotive	25 VDC	1.24 in	31.5 mm	20 %
Chemi-Con EKYC250ELL622ML30S	5000 Hrs	3.043 A	6200 µF	0.63 in	16 mm	Polar	Through Hole	-40 C	105 ░C	3.58 A	Can Radial	0.295 in	7.5 mm	AEC-Q200	Automotive	25 VDC	1.24 in	31.5 mm	20 %	25 mOhm
Chemi-Con EKYC250ELL822MM30S	5000 Hrs	3.1535 A		0.709 in	18 mm	Polar	Through Hole	-40 C	105 ░C	3.71 A	Can Radial	0.295 in	7.5 mm	AEC-Q200	Automotive	25 VDC	1.24 in	31.5 mm	20 %	24 mOhm

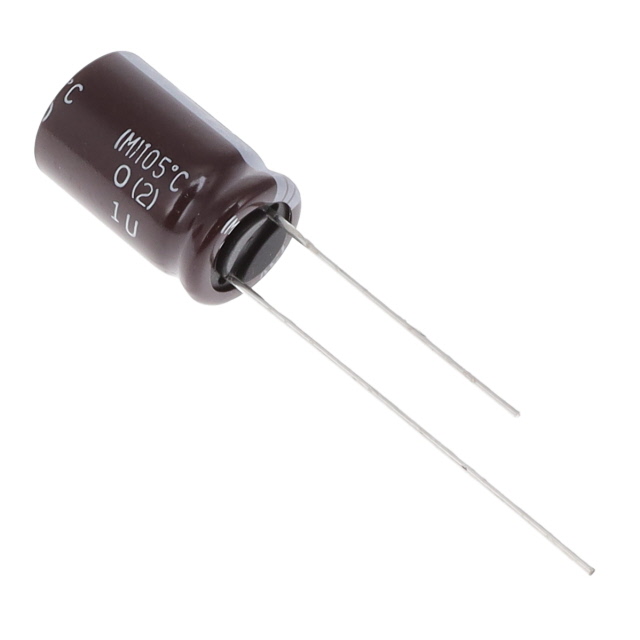

Chemi-Con EKYC250ELL821MJ16S	3000 Hrs		820 µF	0.394 in	10 mm	Polar	Through Hole	-40 C	105 ░C	1.57 A	Can Radial	0.197 "	5 mm	AEC-Q200	Automotive	25 VDC			20 %	100 mOhm	17.5 mm	0.689 in
