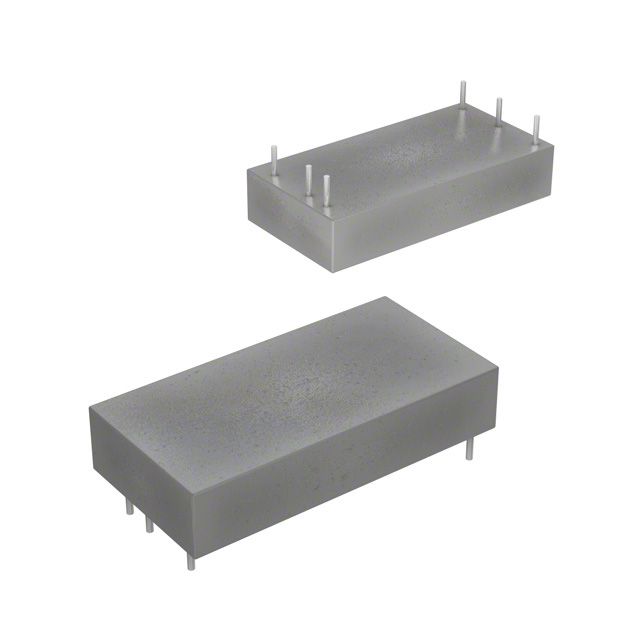

RP20-FW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W DC/DC 1.6KV REG 4:1 9-36IN +/-15OUT

Part	Power (Watts)	Number of Outputs	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Applications	Efficiency	Voltage - Output 1	Size / Dimension	Voltage - Input (Max) [Max]	Features	Voltage - Output 2	Type	Package / Case	Mounting Type	Voltage - Isolation	Current - Output (Max) [Max]
Recom Power RP20-2415DFW/N-HC	20 W	2	Active Low Enable	63 °C	-40 C	667 mA	667 mA	9 V	ITE (Commercial)	86 %	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	OCP OVP Remote On/Off SCP	-15 V	Isolated Module	6-DIP Module	Through Hole	1.6 kV

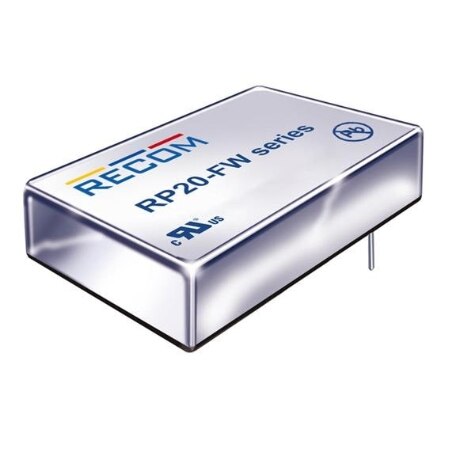

Recom Power RP20-4815SFW-HC	20 W	1	Active High Enable	63 °C	-40 C			18 V	ITE (Commercial)	86 %	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	75 V	OCP OVP SCP UVLO		Isolated Module	6-DIP Module	Through Hole	1.6 kV	1.33 A
Recom Power RP20-2412DFW	20 W	2	Active High Enable	63 °C	-40 C	833 mA	833 mA	9 V	ITE (Commercial)	85 %	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	OCP OVP SCP UVLO	-12 V	Isolated Module	6-DIP Module	Through Hole	1.6 kV
Recom Power RP20-483.3SFW	20 W	1	Active High Enable	63 °C	-40 C			18 V	ITE (Commercial)	84 %	3.3 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	75 V	OCP OVP SCP UVLO		Isolated Module	6-DIP Module	Through Hole	1.6 kV	5.5 A
Recom Power RP20-2412SFW	20 W	1	Active High Enable	63 °C	-40 C			9 V	ITE (Commercial)	85 %	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	OCP OVP SCP UVLO		Isolated Module	6-DIP Module	Through Hole	1.6 kV	1.67 A
Recom Power RP20-4805DFW	20 W	2	Active High Enable	63 °C	-40 C			18 V	ITE (Commercial)		5 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	75 V	OCP OVP SCP UVLO	-5 V	Isolated Module	6-DIP Module	Through Hole	1.6 kV	2 A
Recom Power RP20-2405SFW/N-HC	20 W	1	Active Low Enable	63 °C	-40 C			9 V	ITE (Commercial)	86 %	5 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	OCP OVP Remote On/Off SCP		Isolated Module	6-DIP Module	Through Hole	1.6 kV	4 A
Recom Power RP20-2412DFW-HC	20 W	2	Active High Enable	63 °C	-40 C	833 mA	833 mA	9 V	ITE (Commercial)	85 %	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	OCP OVP SCP UVLO	-12 V	Isolated Module	6-DIP Module	Through Hole	1.6 kV
Recom Power RP20-4812SFW	20 W	1	Active High Enable	63 °C	-40 C			18 V	ITE (Commercial)	85 %	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	75 V	OCP OVP SCP UVLO		Isolated Module	6-DIP Module	Through Hole	1.6 kV	1.67 A
Recom Power RP20-483.3SFW-HC	20 W	1	Active High Enable	63 °C	-40 C			18 V	ITE (Commercial)	84 %	3.3 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	75 V	OCP OVP Remote On/Off SCP		Isolated Module	6-DIP Module	Through Hole	1.6 kV	5.5 A
