1757827 Series

Catalog

AMPLIMITE,PLUG ASY,POSTD,109,ZN,4

Part	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Shell Size, Connector Layout	Flange Feature	Connector Style	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Mounting Type	Connector Type	Number of Rows [custom]	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Contact Type	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]
TE Connectivity AMP Connectors 1757827-4	Brass	Black	-55 C	125 °C	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Solder	37	0.25 Ám	10 Áin	5 A	Through Hole	Plug Male Pins	2	Yellow Chromate Plated Zinc	Steel	Signal	Gold
TE Connectivity AMP Connectors 1757827-1	Brass	Black	-55 C	125 °C			Housing/Shell (Unthreaded)	D-Sub	Solder	9	0.25 Ám	10 Áin	5 A	Through Hole	Plug Male Pins	2	Yellow Chromate Plated Zinc	Steel	Signal	Gold	1	DE E

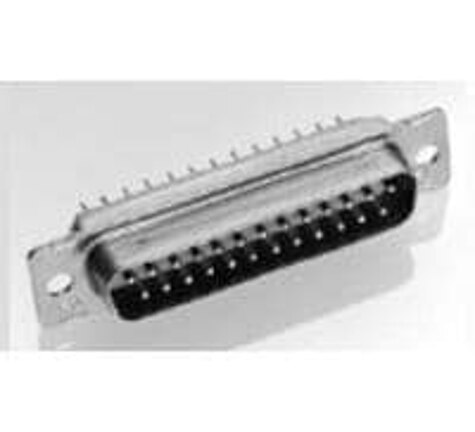

TE Connectivity AMP Connectors 1757827-3	Brass	Black	-55 C	125 °C		B DB	Housing/Shell (Unthreaded)	D-Sub	Solder	25	0.25 Ám	10 Áin	5 A	Through Hole	Plug Male Pins	2	Yellow Chromate Plated Zinc	Steel	Signal	Gold			3
TE Connectivity AMP Connectors 1757827-2	Brass	Black	-55 C	125 °C	2		Housing/Shell (Unthreaded)	D-Sub	Solder	15	0.25 Ám	10 Áin	5 A	Through Hole	Plug Male Pins	2	Yellow Chromate Plated Zinc	Steel	Signal	Gold
TE Connectivity AMP Connectors 1757827-5	Brass	Black	-55 C	125 °C			Housing/Shell (Unthreaded)	D-Sub	Solder	50	0.25 Ám	10 Áin	5 A	Through Hole	Plug Male Pins	3	Yellow Chromate Plated Zinc	Steel	Signal	Gold	5	D DD
