3119-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

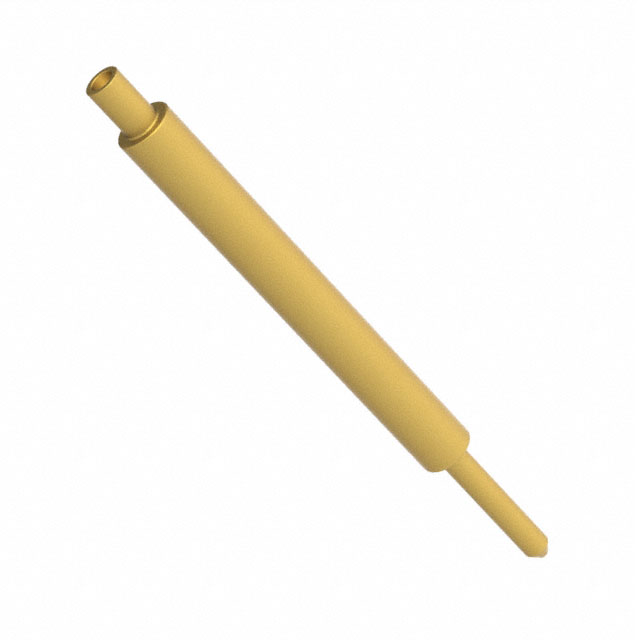

CONN PC PIN CIRC
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter | Flange Diameter | Board Thickness | Board Thickness | Terminal Style | Termination | Length - Above Flange | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Overall [x] | Length - Overall [x] | Mounting Type | Insulation | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.89 mm | 0.035 in | 0.051 " | 1.3 mm | 0.05 in | 1.27 mm | 0.79 mm | 0.031 in | Single End | Swage | 3.81 mm | 0.15 in | 0.64 mm | 0.025 in | 200 Áin | 5.08 Ám | PC Pin | 0.621 " | 15.77 mm | Through Hole | Non-Insulated | Tin | Brass Alloy |
 Mill-Max Manufacturing Corp. | 0.89 mm | 0.035 in | 0.051 " | 1.3 mm | 0.05 in | 1.27 mm | 0.79 mm | 0.031 in | Single End | Swage | 3.81 mm | 0.15 in | 0.64 mm | 0.025 in | 20 µin | 0.51 µm | PC Pin | 0.621 " | 15.77 mm | Through Hole | Non-Insulated | Gold | Brass Alloy |
 Mill-Max Manufacturing Corp. | 0.89 mm | 0.035 in | 0.051 " | 1.3 mm | 0.05 in | 1.27 mm | 0.79 mm | 0.031 in | Single End | Swage | 3.81 mm | 0.15 in | 0.64 mm | 0.025 in | 50 µin | 1.27 µm | PC Pin | 0.621 " | 15.77 mm | Through Hole | Non-Insulated | Gold | Brass Alloy |
