920-0011 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K

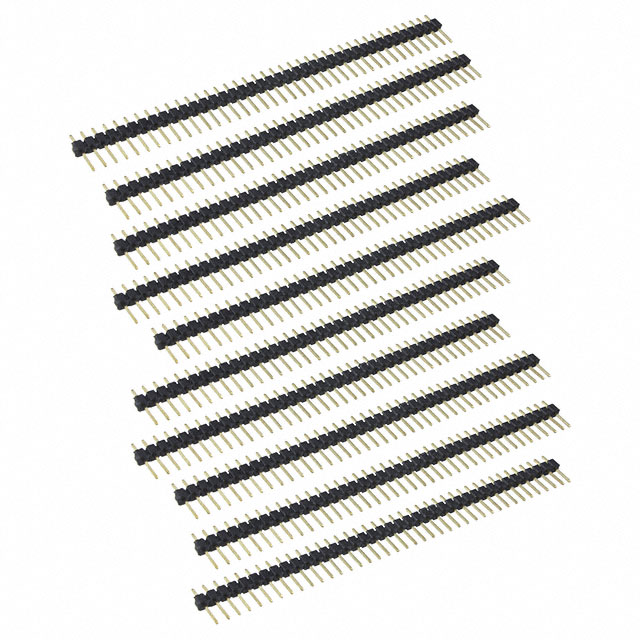

CONN WIRE TO BOARD HDR 40 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE
| Part | Insulation Material | Mounting Type | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Termination | Insulation Height | Insulation Height | Overall Contact Length [x] | Overall Contact Length [x] | Insulation Color | Shrouding | Number of Positions Loaded | Contact Type | Number of Positions | Contact Finish - Post | Number of Rows | Contact Material | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Shape | Contact Length - Mating [x] | Contact Length - Mating [x] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 0.118 in | 3 mm | 125 °C | -40 C | Push-Pull | Solder | 0.098 " | 2.5 mm | 11.61 mm | 0.457 in | Black | Unshrouded | All | Male Pin | 40 | Gold | 1 | Brass | 3 A | 0.1 " | 2.54 mm | UL94 V-0 | Square | 0.24 in | 6.1 mm | Header Breakaway |
