IPR3FA Series

Manufacturer: APEM Inc.

Catalog

SWITCH PUSH SPST-NO 0.5A 48V

Part	Electrical Life	Mounting Type	Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Color - Actuator/Cap	Switch Function	Actuator Type	Features	Ingress Protection	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Illumination Type, Color	Illumination Voltage (Nominal)
APEM Inc. IPR3FAD3104	500000 Cycles	Panel Mount Front	Standard	13.6 mm	48 V	Green	Off-Mom	Button Round	Tactile Feedback	IP67 - Dust Tight Waterproof	200 mA 500 mA	No Marking	48 V	125 °C	-40 C	Wire Leads	SPST-NO
APEM Inc. IPR3FAD3L0S	500000 Cycles	Panel Mount Front	Illuminated Standard	13.6 mm	48 V	Green	Off-Mom	Button Round	Tactile Feedback	IP67 - Dust Tight Waterproof	200 mA 500 mA	No Marking	48 V	125 °C	-40 C	Wire Leads	SPST-NO	LED Red	2 VDC
APEM Inc. IPR3FAD1L0S	500000 Cycles	Panel Mount Front	Illuminated Standard	13.6 mm	48 V	Blue	Off-Mom	Button Round	Tactile Feedback	IP67 - Dust Tight Waterproof	200 mA 500 mA	No Marking	48 V	125 °C	-40 C	Wire Leads	SPST-NO	LED Red	2 VDC
APEM Inc. IPR3FAD7/1L0S	500000 Cycles	Panel Mount Front	Illuminated Standard	13.6 mm	48 V	White	Off-Mom	Button Round	Tactile Feedback	IP67 - Dust Tight Waterproof	200 mA 500 mA	No Marking	48 V	125 °C	-40 C	Wire Leads	SPST-NO	LED Red	2 VDC

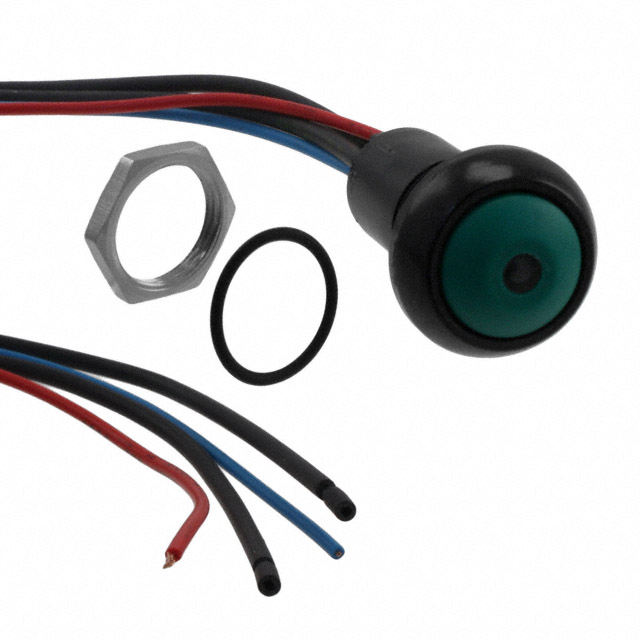

APEM Inc. IPR3FAD3L0G	500000 Cycles	Panel Mount Front	Illuminated Standard	13.6 mm	48 V	Green	Off-Mom	Button Round	Tactile Feedback	IP67 - Dust Tight Waterproof	200 mA 500 mA	No Marking	48 V	125 °C	-40 C	Wire Leads	SPST-NO	Green LED	2 VDC
APEM Inc. IPR3FAD8L0G101	500000 Cycles	Panel Mount Front	Illuminated Standard	13.6 mm	48 V	Silver	Off-Mom	Button Round	Tactile Feedback	IP67 - Dust Tight Waterproof	200 mA 500 mA	No Marking	48 V	125 °C	-40 C	Wire Leads	SPST-NO	Green LED	2 VDC
APEM Inc. IPR3FAD9L0S	500000 Cycles	Panel Mount Front	Illuminated Standard	13.6 mm	48 V	Orange	Off-Mom	Button Round	Tactile Feedback	IP67 - Dust Tight Waterproof	200 mA 500 mA	No Marking	48 V	125 °C	-40 C	Wire Leads	SPST-NO	LED Red	2 VDC
