REF Series

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED ALUMINUM RADIAL

Part	Polarization	Applications	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

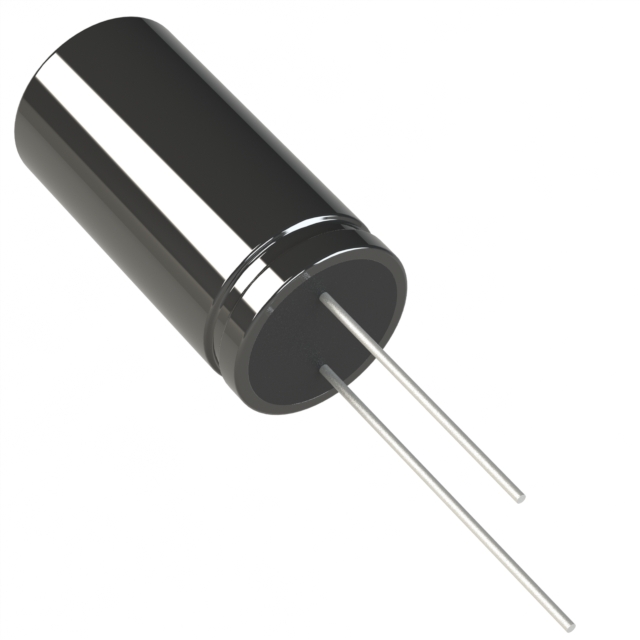

KYOCERA AVX REF0816121M050K	Polar	General Purpose	120 µF	16 mm	0.63 in	130 mOhms	1 A	400 mA	Can Radial	-40 C	105 ░C	Through Hole	0.315 in	8 mm	4000 Hrs	50 VDC	0.138 in	3.5 mm	20 %

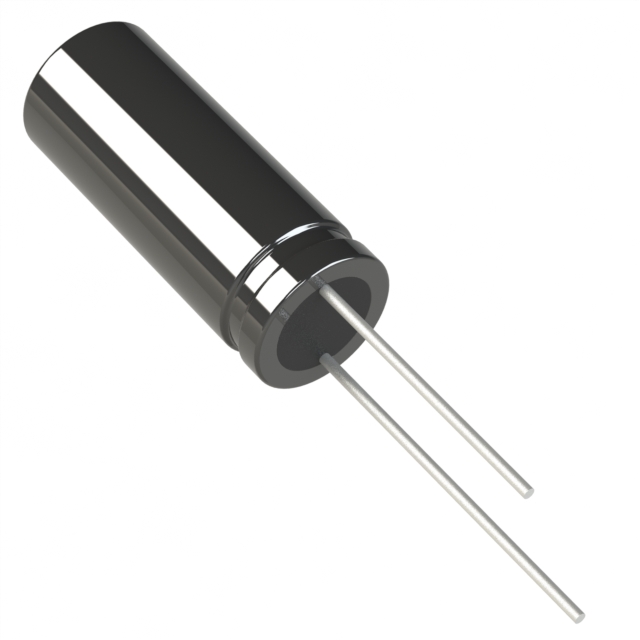

KYOCERA AVX REF0820181M050K	Polar	General Purpose	180 µF			85 mOhms	1.24 A	496 mA	Can Radial	-40 C	105 ░C	Through Hole	0.315 in	8 mm	4000 Hrs	50 VDC	0.138 in	3.5 mm	20 %	0.866 in	22 mm

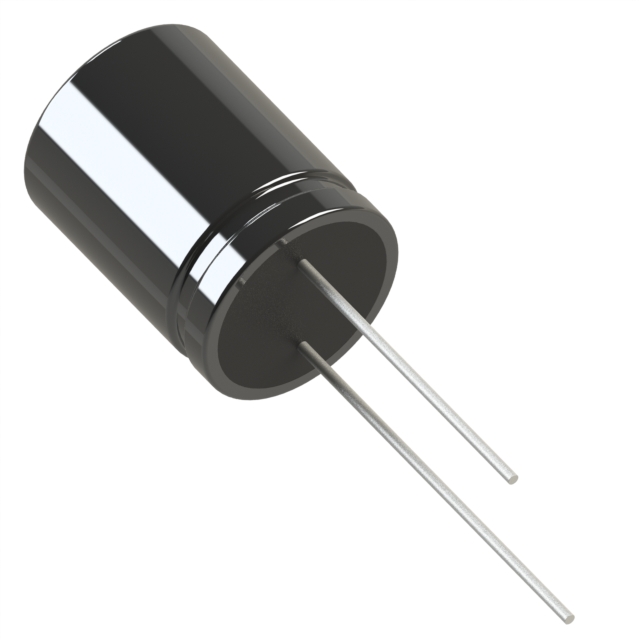

KYOCERA AVX REF1013681M010K	Polar	General Purpose	680 µF	15 mm	0.591 "	52 mOhms	1.08 A	648 mA	Can Radial	-40 C	105 ░C	Through Hole	0.394 in	10 mm	5000 Hrs	10 V	0.197 "	5 mm	20 %
KYOCERA AVX REF0816471M016K	Polar	General Purpose	470 µF	16 mm	0.63 in	55 mOhms	1.045 A	522.5 mA	Can Radial	-40 C	105 ░C	Through Hole	0.315 in	8 mm	4000 Hrs	16 V	0.138 in	3.5 mm	20 %
KYOCERA AVX REF0811101M035K	Polar	General Purpose	100 µF	13 mm	0.512 "	200 mOhms	632 mA	252.8 mA	Can Radial	-40 C	105 ░C	Through Hole	0.315 in	8 mm	4000 Hrs	35 V	0.138 in	3.5 mm	20 %

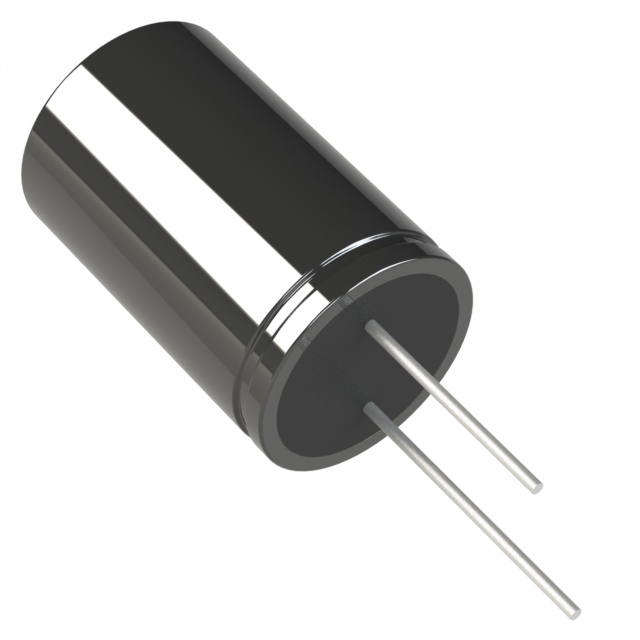

KYOCERA AVX REF1225102M035K	Polar	General Purpose	1000 µF			25 mOhms	2.82 A	1.692 A 120 Hz	Can Radial	-40 C	105 ░C	Through Hole	0.492 in	12.5 mm	6000 Hrs	35 V	0.197 "	5 mm	20 %			1.063 in	27 mm
KYOCERA AVX REF1230221M120K	Polar	General Purpose	220 µF	32 mm	1.26 in	800 mOhm	750 mA	375 mA	Can Radial	-40 C	105 ░C	Through Hole	0.492 in	12.5 mm	6000 Hrs	120 VDC	0.197 "	5 mm	20 %
KYOCERA AVX REF1020821M025K	Polar	General Purpose	820 µF			35 mOhms		1.14 A	Can Radial	-40 C	105 ░C	Through Hole	0.394 in	10 mm	5000 Hrs	25 VDC	0.197 "	5 mm	20 %	0.866 in	22 mm

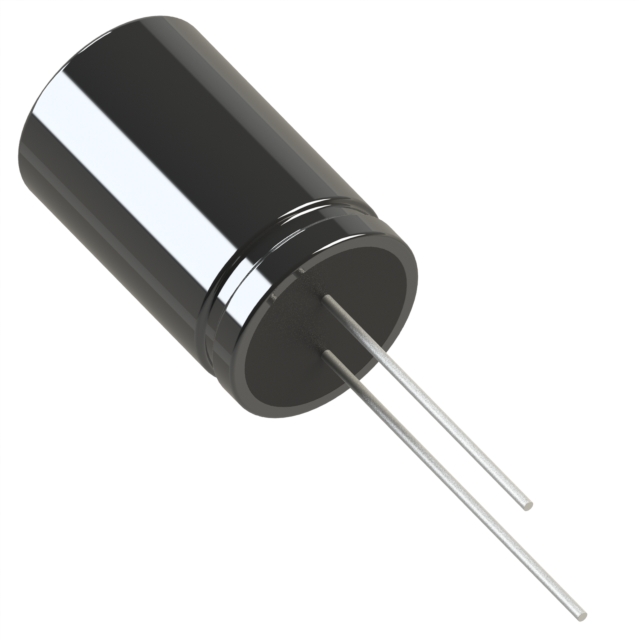

KYOCERA AVX REF1625682M006B	Polar	General Purpose	6800 µF			15 mOhms	3.51 A	2.9835 A	Can Radial	-40 C	105 ░C	Through Hole	0.63 in	16 mm	6000 Hrs	6.3 VDC	0.295 in	7.5 mm	20 %			1.063 in	27 mm

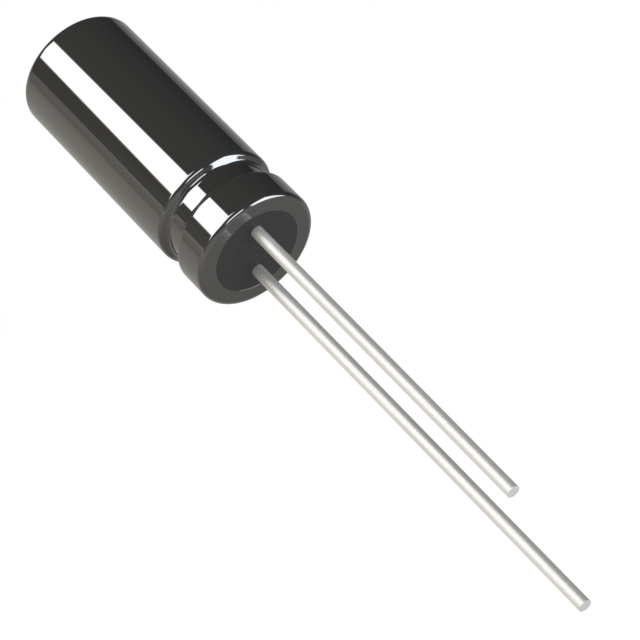

KYOCERA AVX REF0512220M050K	Polar	General Purpose	22 µF			540 mOhms	288 mA	115.2 mA	Can Radial	-40 C	105 ░C	Through Hole	0.197 in	5 mm	3000 Hrs	50 VDC	0.079 in	2 mm	20 %			0.551 in	14 mm
