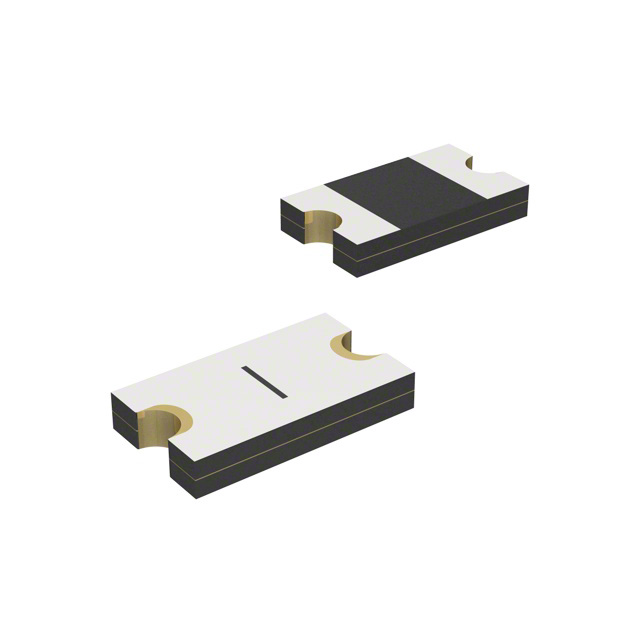

MF-FSMF Series

Catalog

PTC RESET FUSE 6V 500MA 0603

Part	Approval Agency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Max [Max]	Thickness (Max)
Bourns Inc. MF-FSMF050X-2	cURus TUV	Polymeric	0.065 in	0.85 mm	1.65 mm	0.033 "	100 ms	800 mOhms	1 A	100 mOhms	0603 (1608 Metric) Concave	85 °C	-40 C	500 mA	6 V	Surface Mount	1 mm	0.039 in	40 A
Bourns Inc. MF-FSMF010X-2	cURus TUV	Polymeric	0.065 in	0.85 mm	1.65 mm	0.033 "	1 s	6 Ohms	300 mA	900 mOhms	0603 (1608 Metric) Concave	85 °C	-40 C	100 mA	15 V	Surface Mount		0.026 in	40 A	0.65 mm
Bourns Inc. MF-FSMF020X-2	cURus TUV	Polymeric	0.065 in	0.85 mm	1.65 mm	0.033 "	600 ms	3.5 Ohms	500 mA	550 mOhms	0603 (1608 Metric) Concave	85 °C	-40 C	200 mA	9 V	Surface Mount		0.026 in	40 A	0.65 mm
