Schaffner FN2500 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
LINE FLTR 400VDC 277VAC 32A CHAS
| Part | Mounting Type | Current | Frequency - Operating | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Approval Agency | Voltage - Rated AC | Configuration | Inductance | Voltage - Rated DC | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Chassis Mount | 32 A | 60 Hz | General Purpose | -40 C | 100 °C | Terminal Block | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 1.5 mH | 400 V | Single Phase |
 TE Connectivity AMP Connectors | Chassis Mount | 25 A | 60 Hz | General Purpose | -40 C | 100 °C | Threaded Post (M4) | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 1.5 mH | 400 V | Single Phase |
 TE Connectivity AMP Connectors | Chassis Mount | 25 A | 60 Hz | General Purpose | -40 C | 100 °C | Terminal Block | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 1.5 mH | 400 V | Single Phase |
TE Connectivity AMP Connectors | Chassis Mount | 32 A | 60 Hz | General Purpose | -40 C | 100 °C | Threaded Post (M4) | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 1.5 mH | 400 V | Single Phase |
 TE Connectivity AMP Connectors | Chassis Mount | 20 A | 60 Hz | General Purpose | -40 C | 100 °C | Terminal Post | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 2.4 mH | 400 V | Single Phase |
 TE Connectivity AMP Connectors | Chassis Mount | 20 A | 60 Hz | General Purpose | -40 C | 100 °C | Threaded Post (M4) | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 2.4 mH | 400 V | Single Phase |
 TE Connectivity AMP Connectors | Chassis Mount | 10 A | 60 Hz | General Purpose | -40 C | 100 °C | Terminal Post | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 8.3 mH | 400 V | Single Phase |
 TE Connectivity AMP Connectors | Chassis Mount | 20 A | 60 Hz | General Purpose | -40 C | 100 °C | Terminal Block | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 2.4 mH | 400 V | Single Phase |
 TE Connectivity AMP Connectors | Chassis Mount | 10 A | 60 Hz | General Purpose | -40 C | 100 °C | Terminal Block | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 8.3 mH | 400 V | Single Phase |

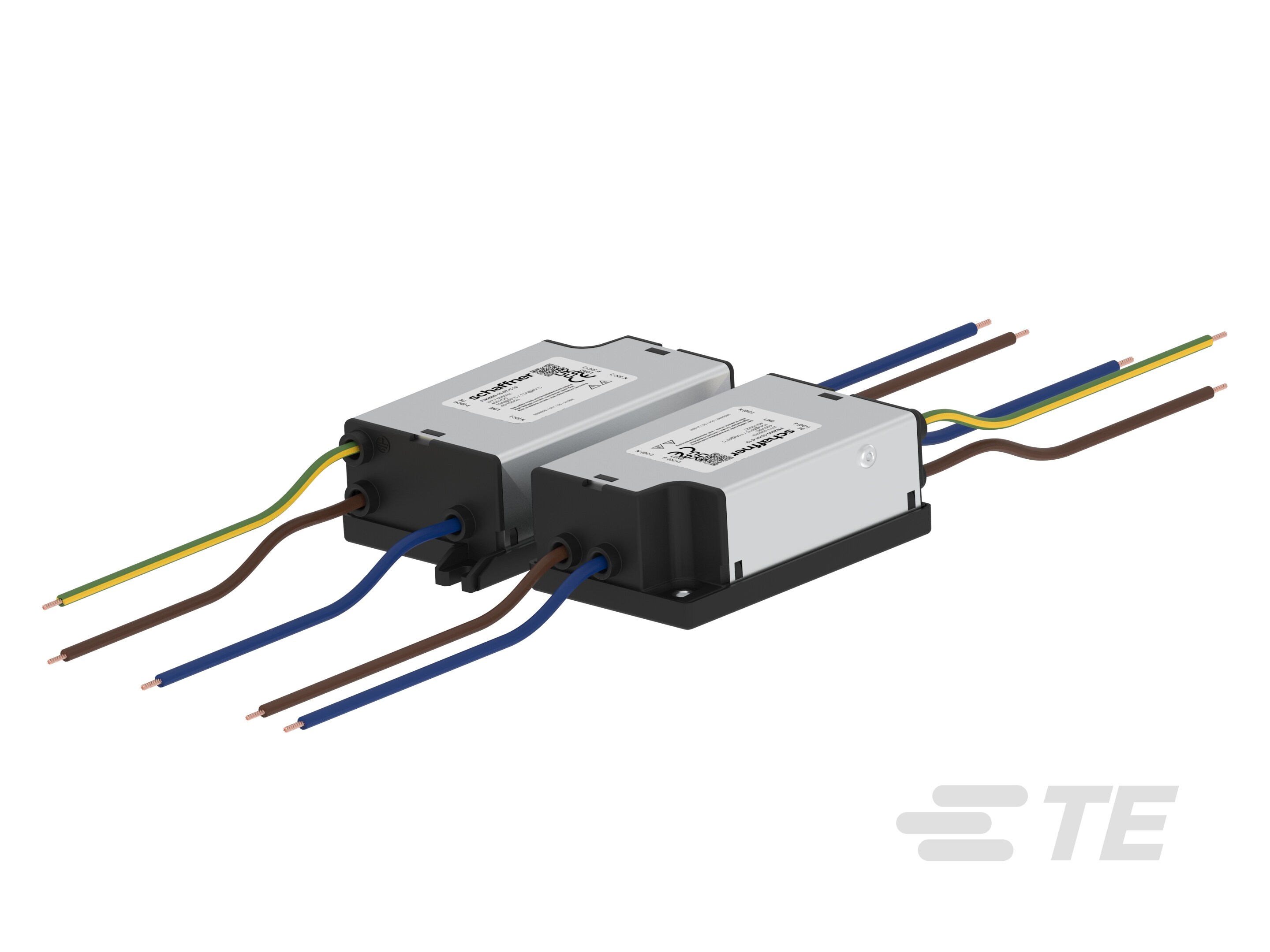

 TE Connectivity AMP Connectors | Chassis Mount | 20 A | 60 Hz | General Purpose | -40 C | 100 °C | Wire Leads | CE CQC CSA ENEC UKCA UR | 277 V | Single Stage | 2.4 mH | 400 V | Single Phase |
