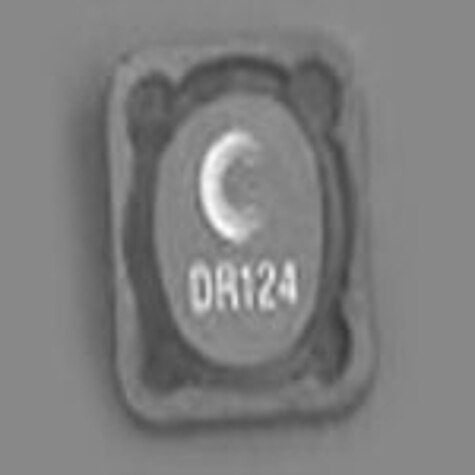

Power Inductors - SMD 39uH 2.85A 110mOhms
Power Inductors - SMD 39uH 2.85A 110mOhms
| Part | Material - Core | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] | Current Rating (Amps) | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Inductance Frequency - Test | Type | Current - Saturation (Isat) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Ferrite | 39 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | 4.5 mm | 0.177 in | 132 mOhm | 2.3 A | Shielded | 125 °C | -40 C | Surface Mount | Nonstandard | 100 kHz | Drum Core Wirewound | 2.85 A | 20 % |
