DTM Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
AUTOMOTIVE CONNECTORS INTERNAL SEAL
| Part | Number of Positions | Accessory Type | For Use With/Related Products | Cable Termination | Contact Type | Wire Gauge | Number of Rows [custom] | Features | Contact Finish | Mounting Type | Connector Type | Wire Type | Fastening Type | Color | Tool Type | Contact Termination | Insulation Material | Current Rating (Amps) | Number of Positions Loaded | Termination | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Style | Contact Finish - Mating | Material Flammability Rating | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height [z] | Contact Shape | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | Seal | DT Series | |||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | 6 | Crimp | Female Socket | 20 AWG | 3 | Wedge Lock | Nickel | Free Hanging (In-Line) | Plug | Discrete | Latch Lock | Gray | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Contacts Size 16 | Extraction Tool | ||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | 4 | Female Socket | 2 | Free Hanging (In-Line) | Plug | Push-Pull | Gray | Crimp | ||||||||||||||||||||||||||||

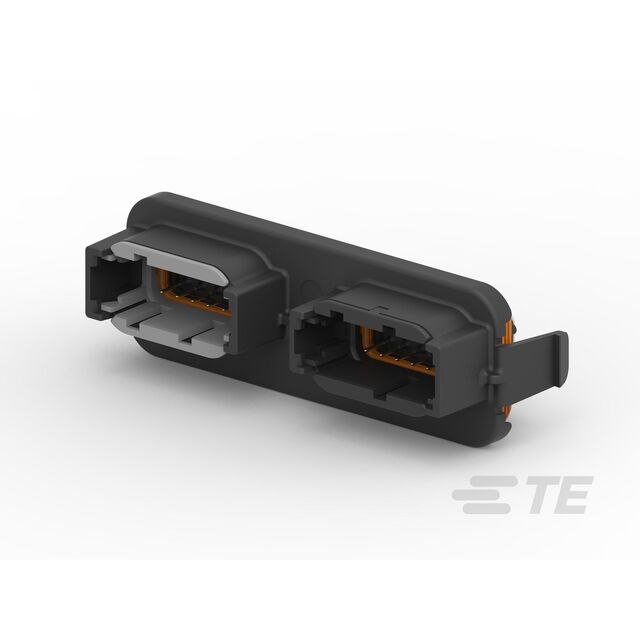

 TE Connectivity AMP Connectors | 24 | Male Pin | 2 | Panel Mount Right Angle Through Hole | Header | Latch Holder | Plastic | Varies by Wire Gauge | All | Solder | Tin | -55 C | 125 °C | Shrouded - 4 Wall | Board to Cable/Wire | Gold | UL94 V-0 | Black | 0.165 in | 4.2 mm | 0.112 in | 2.84 mm | 35 mm | 1.378 in | Circular | IP67 IP6K9K | ||||||||||
TE Connectivity AMP Connectors | 12 | Male Pin | 2 | IP68 IP6K9K | Free Hanging (In-Line) | Receptacle | Latch Holder | Crimp | Glass Filled Nylon Polyamide (PA) | -55 C | 125 °C |
