OF84005 Series

Catalog

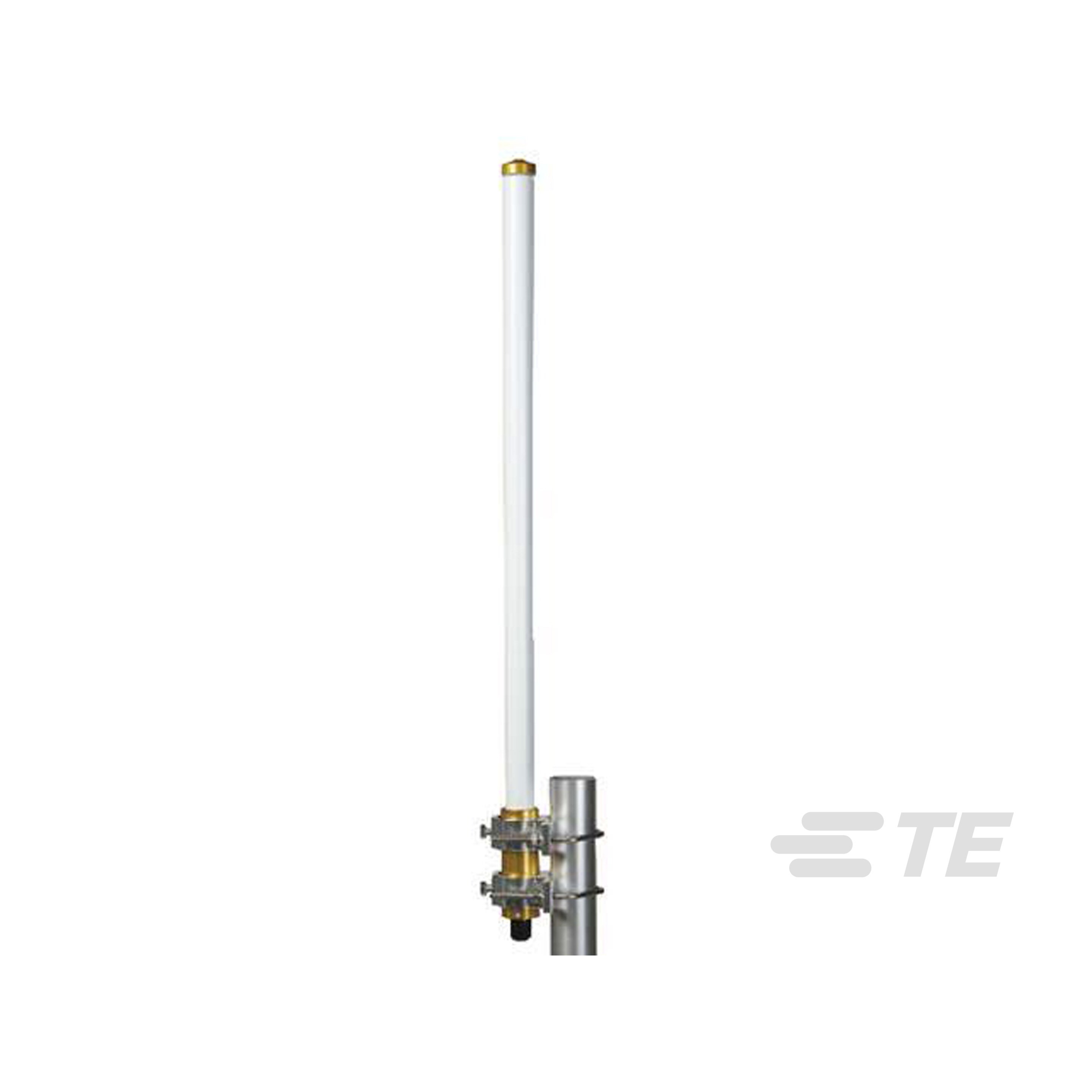

ANTENNA OMNI-DIRECTIONAL 5.3DBI GAIN 870MHZ

Part	Termination	VSWR	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [Max] [z]	Height (Max) [z]	Mounting Type	Ingress Protection	Antenna Type	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Power - Max [Max]	Frequency (Center/Band)	Gain
TE Connectivity AMP Connectors OF84005-FNF	N Type Female	1.8	1	870 MHz	840 MHz	24.764 in	629 mm	Bracket Mount	IP67	Whip Straight	1 GHz	UHF	300 MHz	50 W	850 MHz	5.4 dBi
TE Connectivity AMP Connectors OF84005-FNF	N Type Female	1.8	1	870 MHz	840 MHz	24.764 in	629 mm	Bracket Mount	IP67	Whip Straight	1 GHz	UHF	300 MHz	50 W	850 MHz	5.4 dBi
