AKA02 Series

Catalog

CONN RCP HSG M 12P INLINE PNL MT

Part	Connector Type	Ingress Protection	Type	Shell Material	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Note	Mounting Type	Shell Size - Insert	Fastening Type	Orientation	Includes	Features	Contact Shape	Mounting Feature	Shielding	Housing Color	Insert Material	Number of Positions	Material Flammability Rating	Primary Material	Voltage Rating	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Backshell Material, Plating	Color	Current Rating (Amps)	Termination
TE Intercontec AKA020N00410240000	Receptacle Housing	IP66 IP67	For Male Pins	Zinc Die Cast	Nickel	-20 ░C	130 °C	Contacts Not Included	Free Hanging (In-Line) Panel Mount	M23-12	Push-Twist	Keyed	1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring	Backshell Cable Clamp	Circular	Bulkhead - Front Side Nut	Shielded	Silver	Polybutylene Terephthalate (PBT)	12	UL94 V-0
TE Intercontec AKA020N00620200000	Receptacle Housing	IP66 IP67	For Male Pins	Zinc Die Cast	Nickel	-20 ░C	130 °C	Contacts Not Included	Free Hanging (In-Line)	M23-12	Push-Twist	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Backshell Cable Clamp	Circular		Shielded	Silver	Polybutylene Terephthalate (PBT)	12	UL94 V-0

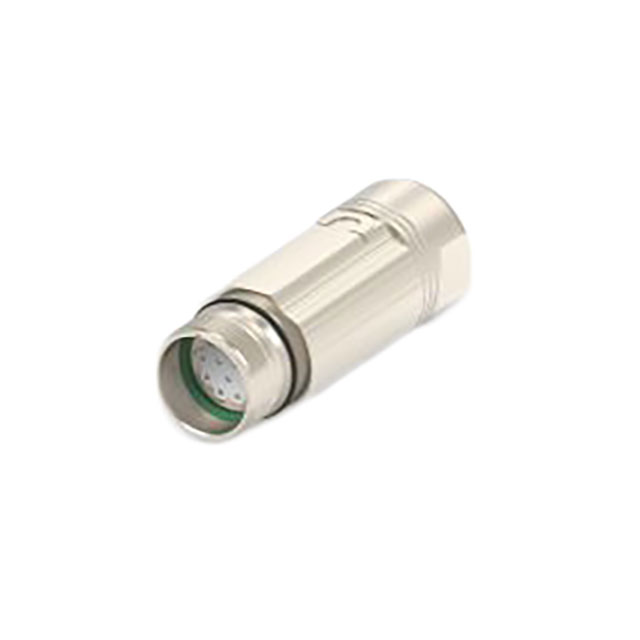

TE Intercontec AKA020N00590038000	Plug Female Sockets	IP66 IP67		Zinc Die Cast	Nickel	-20 ░C	130 °C		Free Hanging (In-Line)	23-12	Push-Twist	Keyed		Backshell			Shielded		Polybutylene Terephthalate (PBT)	12	UL94 V-0	Metal	125 VAC	0.669 "	14 mm	17 mm	0.551 in	Nickel Zinc Die Cast	Silver	7 A	Screw
TE Intercontec AKA021N00750200000	Receptacle Housing	IP66 IP67	For Male Pins	Zinc Die Cast	Nickel	-20 ░C	130 °C	Contacts Not Included	Free Hanging (In-Line)	M23-12	Push-Twist	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Backshell Cable Clamp	Circular		Shielded	Silver	Polybutylene Terephthalate (PBT)	12	UL94 V-0
TE Intercontec AKA020N00750200000	Receptacle Housing	IP66 IP67	For Male Pins	Zinc Die Cast	Nickel	-20 ░C	130 °C	Contacts Not Included	Free Hanging (In-Line)	M23-12	Push-Twist	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Backshell Cable Clamp	Circular		Shielded	Silver	Polybutylene Terephthalate (PBT)	12	UL94 V-0

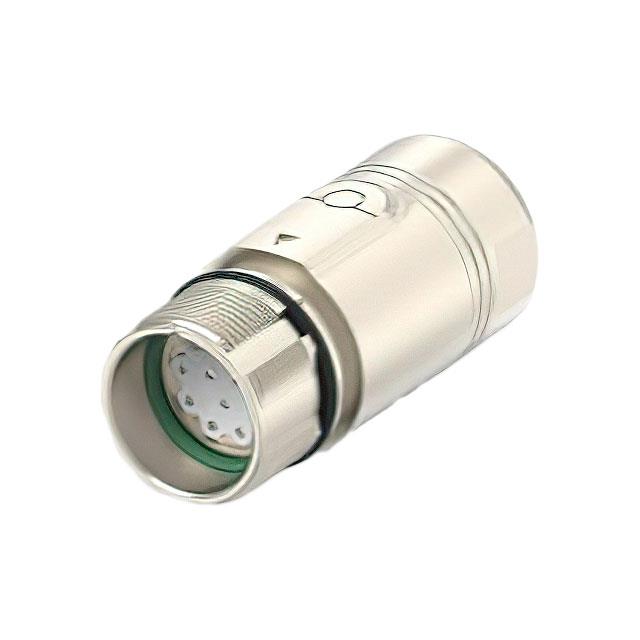

TE Intercontec AKA020N00090200000	Receptacle Housing	IP66 IP67	For Male Pins	Zinc Die Cast	Nickel	-20 ░C	130 °C	Contacts Not Included	Free Hanging (In-Line)	M23-12	Push-Twist	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Backshell Cable Clamp	Circular		Shielded	Silver	Polybutylene Terephthalate (PBT)	12	UL94 V-0
TE Intercontec AKA020N00410200000	Receptacle Housing	IP66 IP67	For Male Pins	Zinc Die Cast	Nickel	-20 ░C	130 °C	Contacts Not Included	Free Hanging (In-Line)	M23-12	Push-Twist	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Backshell Cable Clamp	Circular		Shielded	Silver	Polybutylene Terephthalate (PBT)	12	UL94 V-0
