PTH05030 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
MODULE DC-DC 5VIN 1-OUT 0.8V TO 3.6V 30A 108W 13-PIN TRAY
| Part | Number of Outputs | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Mounting Type | Features | Type | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Voltage - Input (Max) [Max] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

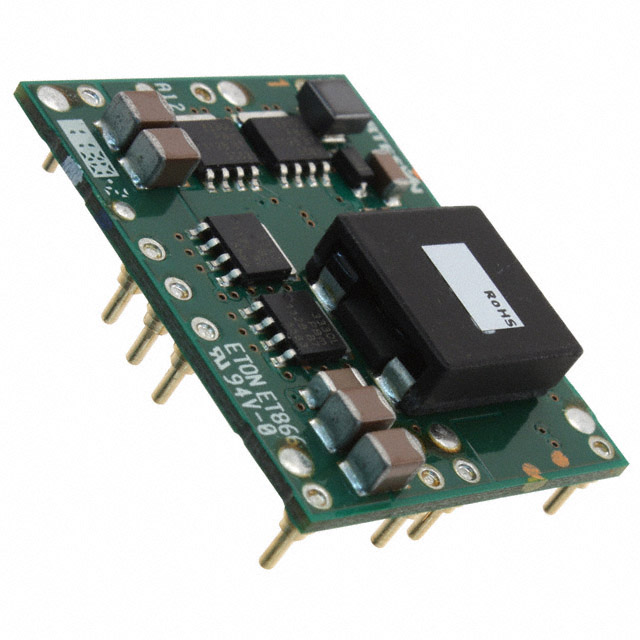

 ARTESYN / Advanced Energy | 1 | 3.6 V | 0.8 V | Through Hole | OTP Remote On/Off SCP UVLO | Non-Isolated PoL Module | Module | 1.12 in | 34.8 mm | 0.35 in | 1.37 in | 8.9 mm | 28.4 mm | 94 % | 5.5 V | 108 W | 85 °C | -40 C | 4.5 V | 30 A | ITE (Commercial) |

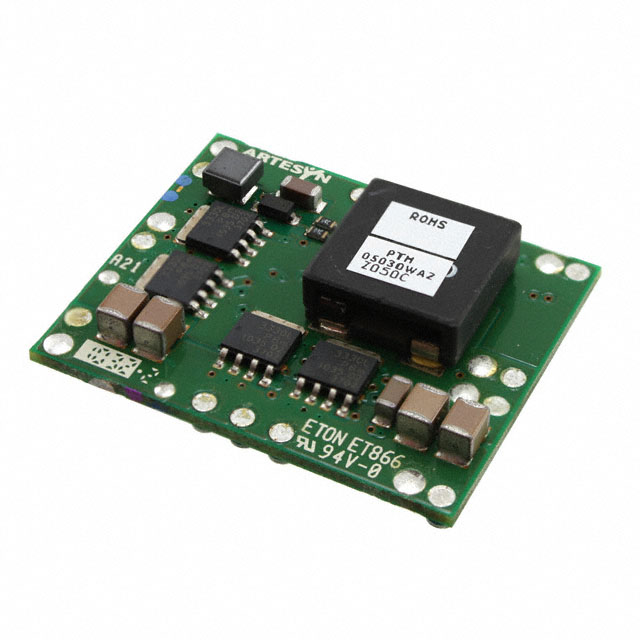

 ARTESYN / Advanced Energy | 1 | 3.6 V | 0.8 V | Surface Mount | UVLO | Non-Isolated PoL Module | 13-SMD Module | 1.12 in | 34.8 mm | 0.35 in | 1.37 in | 8.9 mm | 28.4 mm | 94 % | 5.5 V | 85 °C | -40 C | 4.5 V | 30 A |
