RSH2 Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 2W 3.3VIN 3.3VOUT 500MA 3K

Part	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Efficiency	Voltage - Input (Max) [Max]	Standard Number	Number of Outputs	Power (Watts)	Features	Voltage - Output 1	Package / Case	Voltage - Input (Min) [Min]
Recom Power RSH2-3.33.3S/H3	3000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	500 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	76 %	5.5 V	62368-1	1	1.65 W	Adjustable Output Remote On/Off	3.3 V	14-SMD Module 7 Leads	2.8 V
Recom Power RSH2-3.305S/H3-R	3000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	400 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	78 %	5.5 V	62368-1	1	2 W	Remote On/Off	5 V	14-SMD Module 7 Leads	2.8 V
Recom Power RSH2-0524S/H3-R	3000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	83 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	83 %	13.2 V	62368-1	1	1.992 W	Remote On/Off	24 V	14-SMD Module 7 Leads	4.5 V
Recom Power RSH2-1212S/H3	3000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	167 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)		18 V	62368-1	1	2 W	Remote On/Off	12 V	14-SMD Module 7 Leads	9 V
Recom Power RSH2-2405S/H2	2000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	400 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	81 %	36 V	62368-1	1	2 W	Remote On/Off	5 V	14-SMD Module 7 Leads	18 V
Recom Power RSH2-2415S/H2-R	2000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	134 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	83 %	36 V	62368-1	1	2 W	Remote On/Off	15 V	14-SMD Module 7 Leads	18 V
Recom Power RSH2-3.305S/H3	3000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	400 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	78 %	5.5 V	62368-1	1	2 W	Adjustable Output Remote On/Off	5 V	14-SMD Module 7 Leads	2.8 V
Recom Power RSH2-1205S/H2	2000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	400 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	81 %	18 V	62368-1	1	2 W	Remote On/Off	5 V	14-SMD Module 7 Leads	9 V

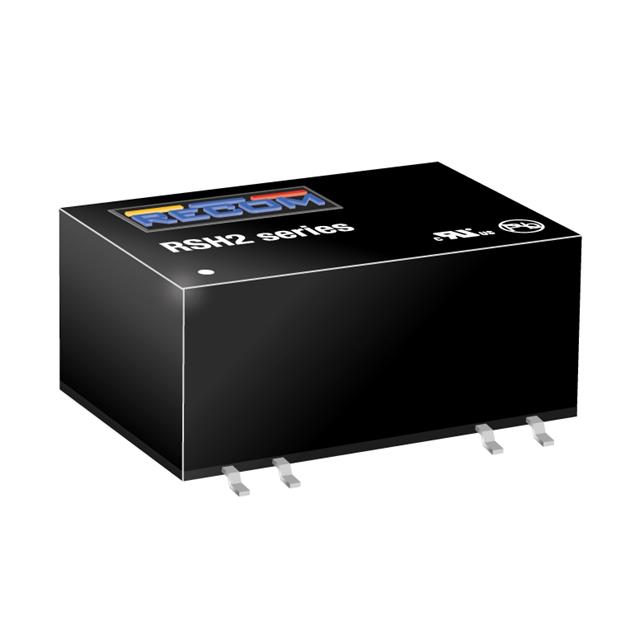

Recom Power RSH2-053.3S/H2	2000 V	12.8 mm	8.7 mm	0.74 "	18.9 mm	0.5 "	0.34 in	Isolated Module	500 mA	Surface Mount	-40 °C	100 °C	ITE (Commercial)	78 %	13.2 V	62368-1	1	1.65 W	Remote On/Off	3.3 V	14-SMD Module 7 Leads	4.5 V
