2004-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

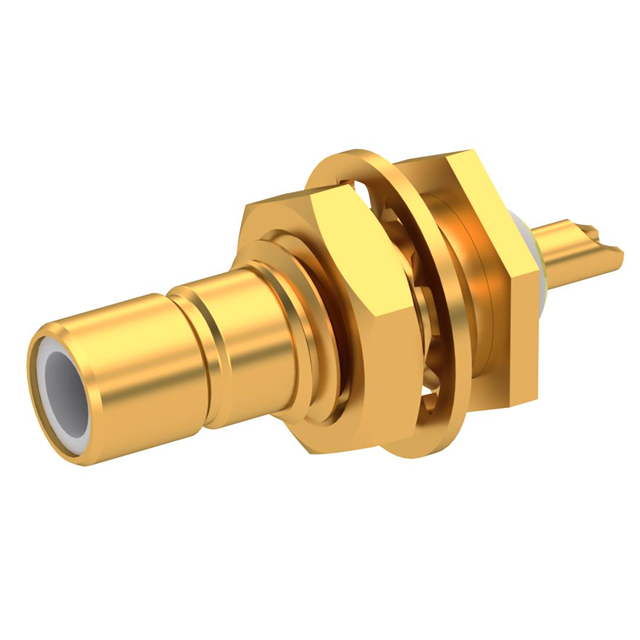

SMB M STR BHD SP
| Part | Body Finish | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Material | Dielectric Material | Connector Style | Mounting Feature | Connector Type | Center Contact Material | Housing Color | Impedance | Fastening Type | Shield Termination | Mounting Type | Frequency - Max [Max] | Number of Ports | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | 500 | Gold | Brass | Polytetrafluoroethylene (PTFE) | SMB | Bulkhead - Front Side Nut | Jack Male Pin | Beryllium Copper | Gold | 50 Ohms | Snap-On | Solder | Panel Mount | 4 GHz | 1 | Solder Cup |
