HFA70 Series

Catalog

DIODE SWITCHING 35A 4-PIN SOT-227

Part	Technology	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Package / Case	Current - Reverse Leakage @ Vr	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)
Vishay General Semiconductor - Diodes Division VS-HFA70FA120	Standard	2 Independent	70 A	SOT-227-4 miniBLOC	75 µA	200 mA 500 ns	1.2 kV	Chassis Mount	3.8 V	51 ns	SOT-227	150 °C	-55 °C
Vishay General Semiconductor - Diodes Division HFA70NC60C	Standard	1 Pair Common Cathode	56 A	D-61-8	10 µA	200 mA 500 ns	600 V	Chassis Mount	1.5 V	110 ns	D-61-8	150 °C	-55 °C
Vishay General Semiconductor - Diodes Division VS-HFA70EA120	Standard	2 Independent	35 A	SOT-227-4 miniBLOC	75 µA	200 mA 500 ns	1.2 kV	Chassis Mount	3 V	145 ns	SOT-227

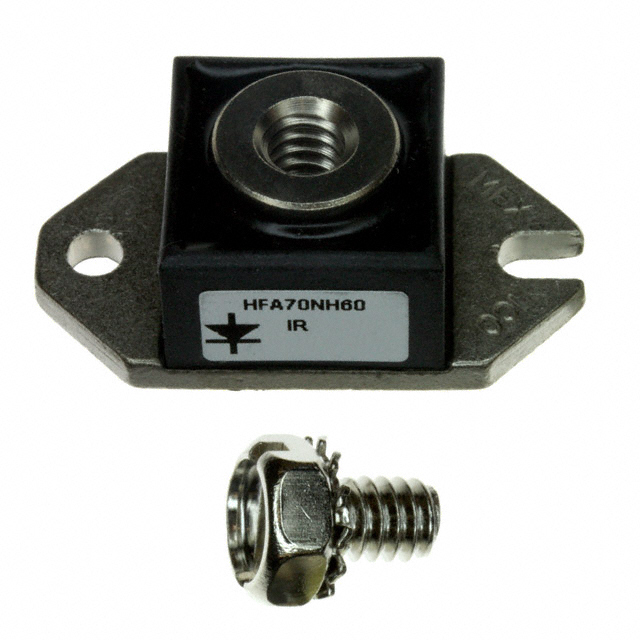

Vishay General Semiconductor - Diodes Division HFA70NH60	Standard			D-67 HALF-PAK	20 µA	200 mA 500 ns	600 V	Chassis Mount	1.5 V	120 ns	D-67 HALF-PAK			70 A
