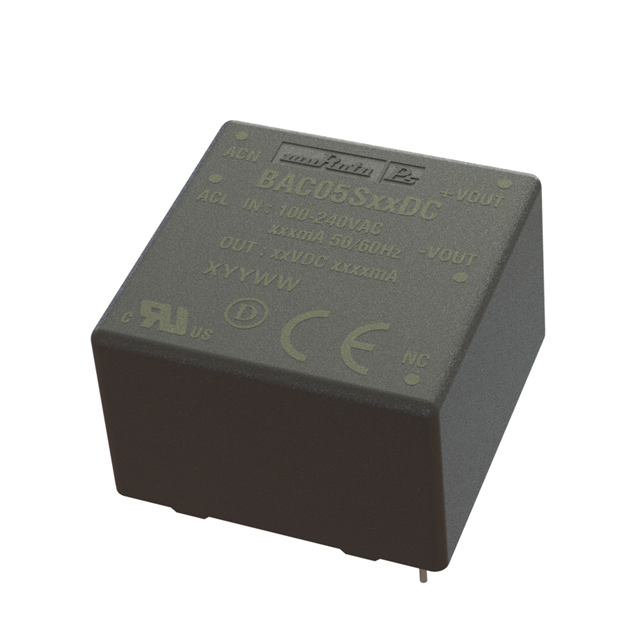

BAC05S Series
Manufacturer: Murata Electronics
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 0.42A 5W 5-PIN DIP MODULE TUBE
| Part | Line Regulation | Load Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Package / Case | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Output 1 | Mounting Type | Efficiency | Number of Outputs | Approval Agency | Type | Features | Power (Watts) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 0.5 % | ±1% | 85 VAC 120 VDC | 264 VAC 370 VDC | 5-DIP Module | ITE (Commercial) Medical | -40 °C | 85 °C | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in | 12 V | Through Hole | 79 % | 1 | CE cURus | Enclosed | Universal Input | 5 W | 420 mA |
 Murata Electronics | 0.5 % | ±1% | 85 VAC 120 VDC | 264 VAC 370 VDC | 5-DIP Module | ITE (Commercial) Medical | -40 °C | 85 °C | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in | 24 V | Through Hole | 81 % | 1 | CE cURus | Enclosed | Universal Input | 5 W | 210 mA |
 Murata Electronics | 0.5 % | ±1% | 85 VAC 120 VDC | 264 VAC 370 VDC | 5-DIP Module | ITE (Commercial) Medical | -40 °C | 85 °C | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in | 5 V | Through Hole | 76 % | 1 | CE cURus | Enclosed | Universal Input | 5 W | 1 A |
