K21KCC-P Series
Manufacturer: ODU
Beta
⌘K

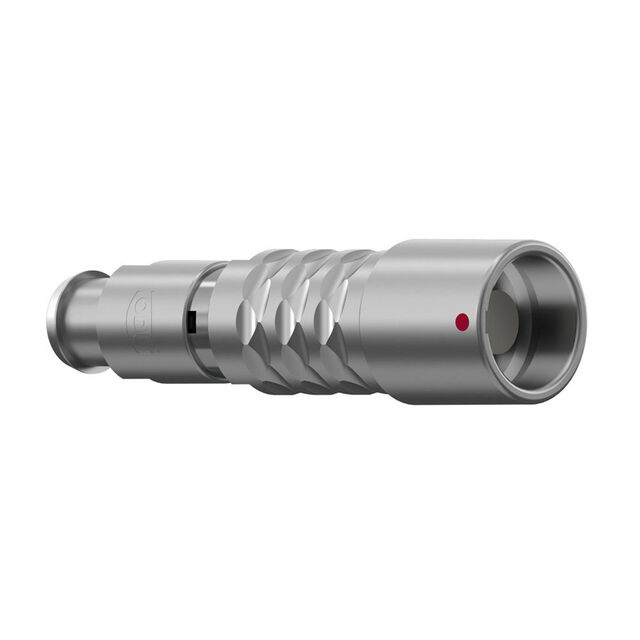

ODU MINI-SNAP INLINE RECEPT,SZ.1
| Part | Color | Mounting Type | Shell Size - Insert | Contact Finish - Mating | Fastening Type | Primary Material | Insert Material | Shell Material | Voltage Rating | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Shell Finish | Orientation | Shielding | Number of Positions | Current Rating (Amps) | Contact Material | Features | Applications | Ingress Protection | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silver | Free Hanging (In-Line) | 1 | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Brass | 333 V | Brass Chrome over Nickel | 120 °C | -40 C | 0.217 in | 5 mm | 0.197 in | 5.5 mm | Chrome over Nickel | C | Shielded | 7 | 7.5 A | Brass | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | |
Silver | Free Hanging (In-Line) | 1 | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Brass | 300 VDC | Brass Chrome over Nickel | 120 °C | -40 C | 0.236 in | 5.5 mm | 0.217 in | 6 mm | Chrome over Nickel | C | Shielded | 8 | 7.5 A | Brass | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | |
Silver | Free Hanging (In-Line) | 1 | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Brass | 333 V | Brass Chrome over Nickel | 120 °C | -40 C | 0.236 in | 5.5 mm | 0.217 in | 6 mm | Chrome over Nickel | C | Shielded | 7 | 7.5 A | Brass | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | |
Silver | Free Hanging (In-Line) | 1 | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Brass | 333 V | Brass Chrome over Nickel | 120 °C | -40 C | 0.217 in | 5 mm | 0.197 in | 5.5 mm | Chrome over Nickel | C | Shielded | 7 | 7.5 A | Brass | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | |
Silver | Free Hanging (In-Line) | 1 | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Brass | 333 V | Brass Chrome over Nickel | 120 °C | -40 C | 0.256 in | 6 mm | 0.236 in | 6.5 mm | Chrome over Nickel | C | Shielded | 7 | 7.5 A | Brass | Backshell Strain Relief | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Receptacle Female Sockets |
