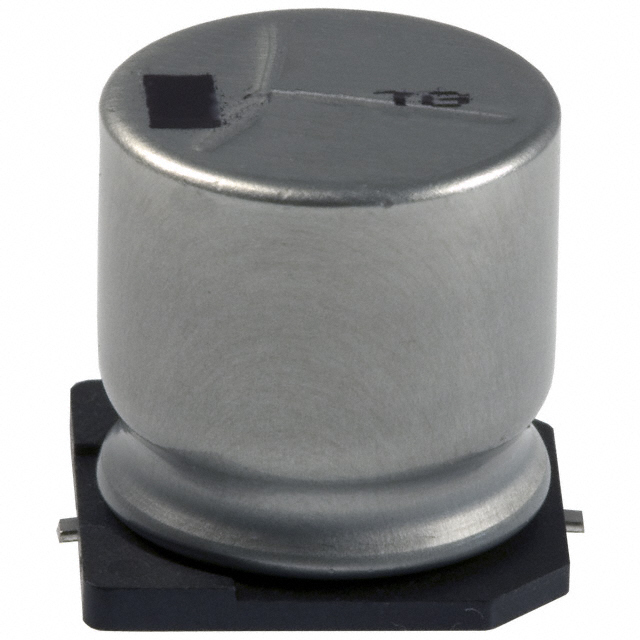

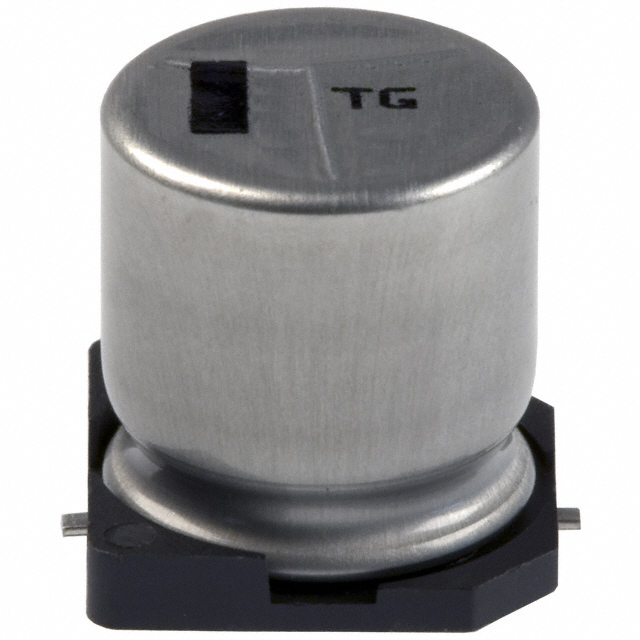

EEV-TG Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 100UF 20% 35V SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Mounting Type	ESR (Equivalent Series Resistance)	Applications	Ratings	Tolerance	Polarization	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ High Frequency	Height - Seated (Max)
Panasonic Industrial Automation Sales EEV-TG1V101UP	125 °C	-40 °C	35 V	0.315 "	8 mm	100 µF	2000 Hrs	Radial Can - SMD	10.2 mm	0.402 "	128.1 mA	Surface Mount	500 mOhm	Automotive	AEC-Q200	20 %	Polar	0.327 "	8.3 mm	0.327 in	8.3 mm	197 mA
Panasonic Industrial Automation Sales EEV-TG1H331Q	125 °C	-40 °C	50 VDC	0.492 in	12.5 mm	330 µF	2000 Hrs	Radial Can - SMD		0.531 "	390 mA	Surface Mount	230 mOhm	Automotive	AEC-Q200	20 %	Polar	0.531 in	13.5 mm	0.531 in	13.5 mm	600 mA	13.5 mm
Panasonic Industrial Automation Sales EEV-TG1C102M	125 °C	-40 °C	16 V	0.63 in	16 mm	1000 µF	2000 Hrs	Radial Can - SMD	16.5 mm	16.51 mm	715 mA	Surface Mount	80 mOhm	Automotive	AEC-Q200	20 %	Polar	0.669 in	17 mm	0.669 in	17 mm	1.1 A
Panasonic Industrial Automation Sales EEV-TG1E102UM	125 °C	-40 °C	25 VDC	0.63 in	16 mm	1000 µF	2000 Hrs	Radial Can - SMD	16.5 mm	16.51 mm	715 mA	Surface Mount	80 mOhm	Automotive	AEC-Q200	20 %	Polar	0.669 in	17 mm	0.669 in	17 mm	1.1 A
Panasonic Industrial Automation Sales EEV-TG2A220P	125 °C	-40 °C	100 V	0.394 in	10 mm	22 µF	2000 Hrs	Radial Can - SMD	10.2 mm	0.402 "	58.5 mA	Surface Mount	1 Ohm	Automotive	AEC-Q200	20 %	Polar	0.406 in	10.3 mm	0.406 "	10.3 mm	90 mA
Panasonic Industrial Automation Sales EEV-TG1A152UQ	125 °C	-40 °C	10 V	0.492 in	12.5 mm	1.5 mF	2000 Hrs	Radial Can - SMD		0.531 "	520 mA	Surface Mount	120 mOhm	Automotive	AEC-Q200	20 %	Polar	0.531 in	13.5 mm	0.531 in	13.5 mm	800 mA	13.5 mm
Panasonic Industrial Automation Sales EEV-TG1E101P	125 °C	-40 °C	25 VDC	0.315 "	8 mm	100 µF	2000 Hrs	Radial Can - SMD	10.2 mm	0.402 "	128.1 mA	Surface Mount	500 mOhm	Automotive	AEC-Q200	20 %	Polar	0.327 "	8.3 mm	0.327 in	8.3 mm	197 mA
Panasonic Industrial Automation Sales EEV-TG1A221UP	125 °C	-40 °C	10 V	0.315 "	8 mm	220 µF	1000 Hrs	Radial Can - SMD	6.2 mm	0.244 in	65 mA	Surface Mount	500 mOhm	Automotive	AEC-Q200	20 %	Polar	0.327 "	8.3 mm	0.327 in	8.3 mm	100 mA
Panasonic Industrial Automation Sales EEV-TG1H220P	125 °C	-40 °C	50 VDC	0.315 "	8 mm	22 µF	1000 Hrs	Radial Can - SMD	6.2 mm	0.244 in	52 mA	Surface Mount	1.6 Ohm	Automotive	AEC-Q200	20 %	Polar	0.327 "	8.3 mm	0.327 in	8.3 mm	80 mA
Panasonic Industrial Automation Sales EEV-TG1H330P	125 °C	-40 °C	50 VDC	0.315 "	8 mm	33 ÁF	2000 Hrs	Radial Can - SMD	10.2 mm	0.402 "	86.45 mA	Surface Mount	750 mOhm	Automotive	AEC-Q200	20 %	Polar	0.327 "	8.3 mm	0.327 in	8.3 mm	133 mA
