EMC2 Series

Catalog

COMPLEMENTARY BIPOLAR DIGITAL TRANSISTOR (BRT)/ REEL ROHS COMPLIANT: YES

Part	Mounting Type	Resistor - Emitter Base (R2)	Qualification	Power - Max [Max]	Resistor - Base (R1)	Current - Collector Cutoff (Max) [Max]	Grade	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]

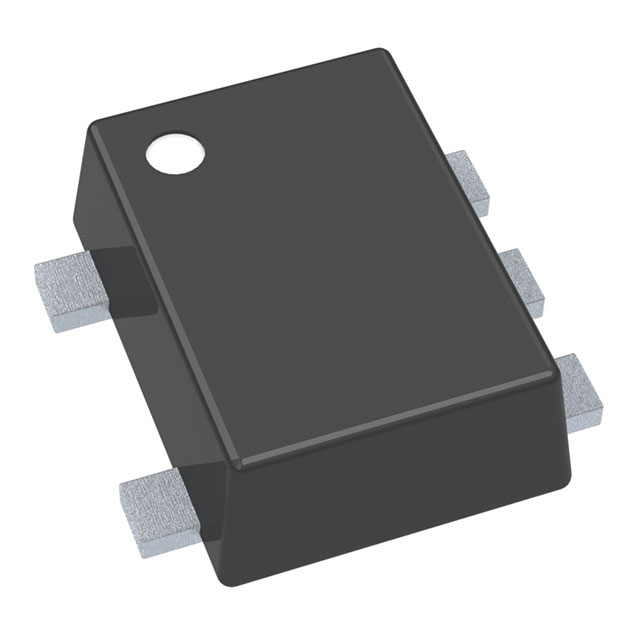

ON Semiconductor NSVEMC2DXV5T1G	Surface Mount	22 kOhms	AEC-Q101	500 mW	22 kOhms	500 nA	Automotive	100 mA	60 hFE	SOT-553	SOT-553	250 mV	1 NPN 1 PNP	50 V
