HM2J09 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

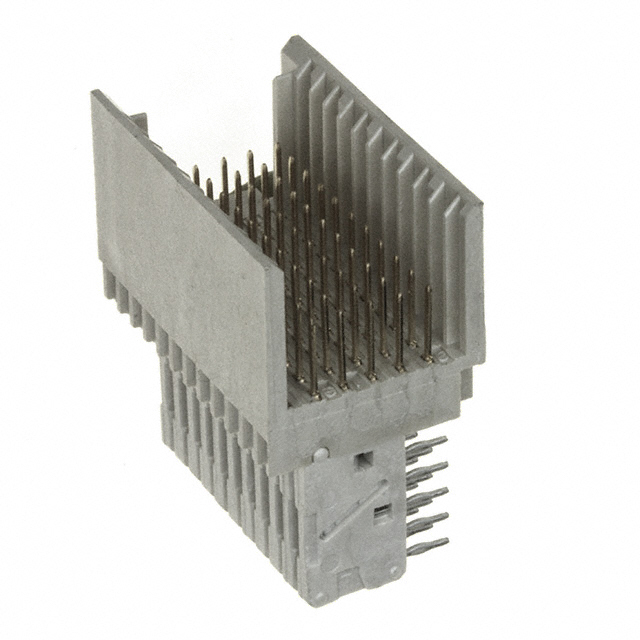

CONN HEADER 55POS 2MM PRESS-FIT
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Positions Loaded | Mounting Type | Connector Type | Number of Rows | Termination | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 1.5 A | -55 C | 125 °C | 500 V | All | Board Edge Right Angle Through Hole | Header Male Pins | 5 | Press-Fit | C 11 | 30 Áin | 0.76 Ám | Gold | 55 | 0.079 in | 2 mm |
Amphenol ICC (FCI) | ||||||||||||||||
 Amphenol ICC (FCI) | 1.5 A | -55 C | 125 °C | 750 Vrms | All | Board Edge Right Angle Through Hole | Header Male Pins | 5 | Press-Fit | C 11 | 30 Áin | 0.76 Ám | Gold | 55 | 0.079 in | 2 mm |
Amphenol ICC (FCI) | 1.5 A | -55 C | 125 °C | 500 V | All | Board Edge Right Angle Through Hole | Header Male Pins | 5 | Press-Fit | C 11 | 30 Áin | 0.76 Ám | Gold | 55 | 0.079 in | 2 mm |
