4541-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

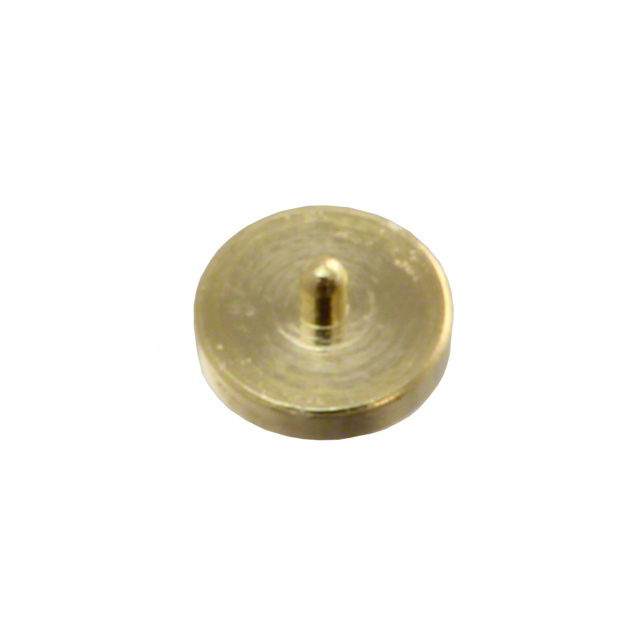

NAIL HEAD PIN
| Part | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [custom] | Length - Overall [custom] | Terminal Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | 0.098 in | 2.49 mm | Brass Alloy | 0.018 in | 0.46 mm | Gold | PC Pin | 0.25 Ám | 10 Áin | Solder | 0.56 mm | 0.022 in | 1.24 mm | 0.049 in | Nail Head Single End | Through Hole |
 Mill-Max Manufacturing Corp. | Non-Insulated | 0.098 in | 2.49 mm | Brass Alloy | 0.018 in | 0.46 mm | Tin | PC Pin | 5.08 Ám | 200 Áin | Solder | 0.56 mm | 0.022 in | 1.24 mm | 0.049 in | Nail Head Single End | Through Hole |
