HLMP-CW Series

Catalog

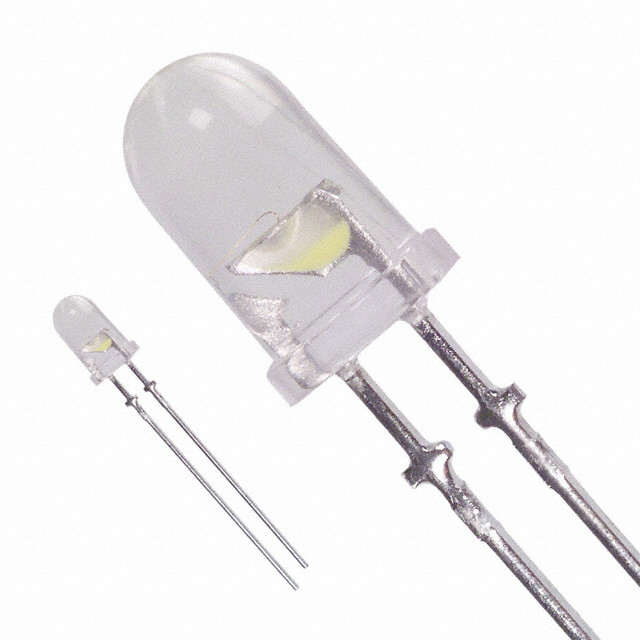

LED WHITE CLEAR T-1 3/4 T/H

Part	Lens Transparency	Color	Lens Color	Millicandela Rating	Current - Test	Supplier Device Package	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Size	Lens Size	Height (Max) [z]	Package / Case	Lens Style	Configuration	Height (Max) [Max] [z]
Broadcom Limited HLMP-CW37-TW000	Clear	White	Colorless	4850 mcd	20 mA	T-1 3/4	30 °	Through Hole	3.2 V	5 mm	T-1 3/4	12.25 mm	Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW31-PS000	Clear	White	Colorless	1690 mcd	20 mA	T-1 3/4	30 °	Through Hole	3.2 V	5 mm	T-1 3/4		Radial	Round with Domed Top	Standard	12.21 mm
Broadcom Limited HLMP-CW11-WZ000	Clear	White	Colorless		20 mA	T-1 3/4	15 °	Through Hole	3.2 V	5 mm	T-1 3/4	8.91 mm	Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW38-SV000		White		3000 mcd	20 mA	T-1 3/4	30 °	Through Hole	3.4 V	5 mm	T-1 3/4	8.91 mm	Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW11-XY000	Clear	White	Colorless	9600 mcd	20 mA	T-1 3/4	15 °	Through Hole	3.2 V	5 mm	T-1 3/4	8.91 mm	Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW23-SV000	Clear	White	Colorless	3700 mcd	20 mA	T-1 3/4	23 °	Through Hole	3.2 V	5 mm	T-1 3/4	8.91 mm	Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW37-UX000	Clear	White	Colorless	6250 mcd	20 mA	T-1 3/4	30 °	Through Hole	3.2 V	5 mm	T-1 3/4	12.25 mm	Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW15-VY000	Clear	White	Colorless	8100 mcd	20 mA	T-1 3/4	15 °	Through Hole	3.2 V	5 mm	T-1 3/4		Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW15-TW000	Clear	White	Colorless	4850 mcd	20 mA	T-1 3/4	15 °	Through Hole	3.2 V	5 mm	T-1 3/4		Radial	Round with Domed Top	Standard
Broadcom Limited HLMP-CW12-XY000	Clear	White	Colorless	9600 mcd	20 mA	T-1 3/4	15 °	Through Hole	3.2 V	5 mm	T-1 3/4		Radial	Round with Domed Top	Standard	12.49 mm
