2GK721 Series

Catalog

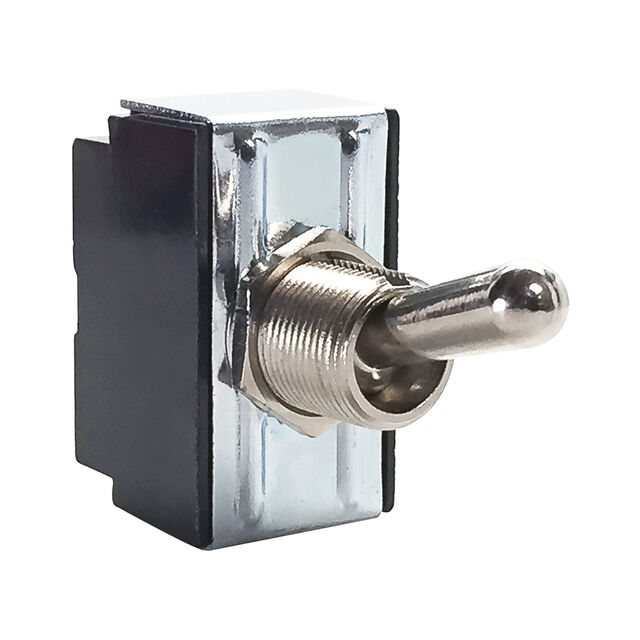

SWITCH TOGGLE DPST 20A 125V

Part	Electrical Life	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Max]	Circuit	Current Rating (Amps)	Actuator Length [x]	Illumination	Termination Style	Voltage Rating - AC	Bushing Thread
Carling Technologies 2GK721-D-3B-B	50000 Cycles	Panel Mount	Standard Round	12.7 mm	On-Off	85 °C	DPST	20 A	17.45 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	125 V	15/32-32
Carling Technologies 2GK721-D-2W-B	50000 Cycles	Panel Mount	Standard Round	12.7 mm	On-Off	85 °C	DPST	20 A		Non-Illuminated	Quick Connect - 0.250" (6.3mm)	125 V	15/32-32
Carling Technologies 2GK721-D-4B-B/2HEX	50000 Cycles	Panel Mount	Paddle	12.7 mm	On-Off	85 °C	DPST	20 A	17.45 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	125 V	15/32-32
