AWH 60G Series

Catalog

CONN HEADER 60POS IDC GOLD

Part	Features	Number of Positions	Wire Type	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Contact Finish	Color	Contact Type	Row Spacing [x]	Row Spacing	Connector Type	Cable Termination	Fastening Type	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Contact Shape	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Material	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Color	Number of Positions Loaded	Contact Material	Contact Length - Post	Contact Length - Post	Style

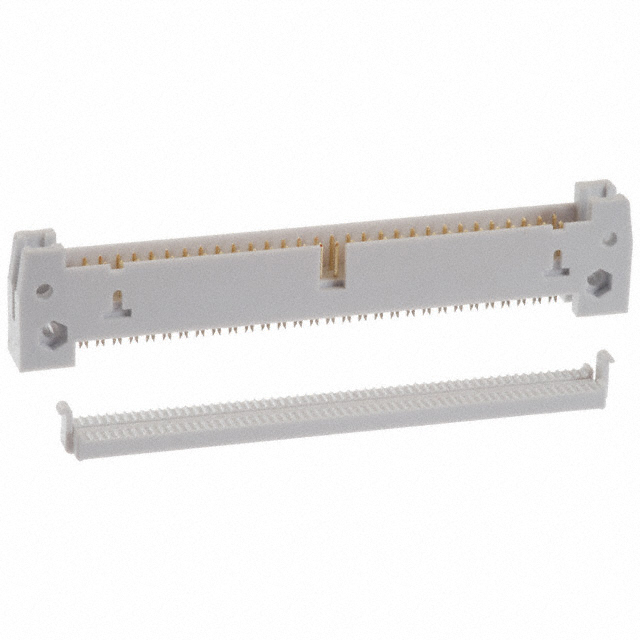

Assmann WSW Components AWH60G-0202-IDC-R	Feed Through	60	Ribbon Cable	2.54 mm	0.1 in	2	Free Hanging (In-Line)	Gold	Gray	Male Pin	0.1 in	2.54 mm	Header	IDC
Assmann WSW Components AWH 60G-0232-IDC	Feed Through	60	Ribbon Cable	2.54 mm	0.1 in	2	Free Hanging (In-Line)	Gold	Gray	Male Pin	0.1 in	2.54 mm	Header	IDC	Latch Lock/Eject Hooks Long

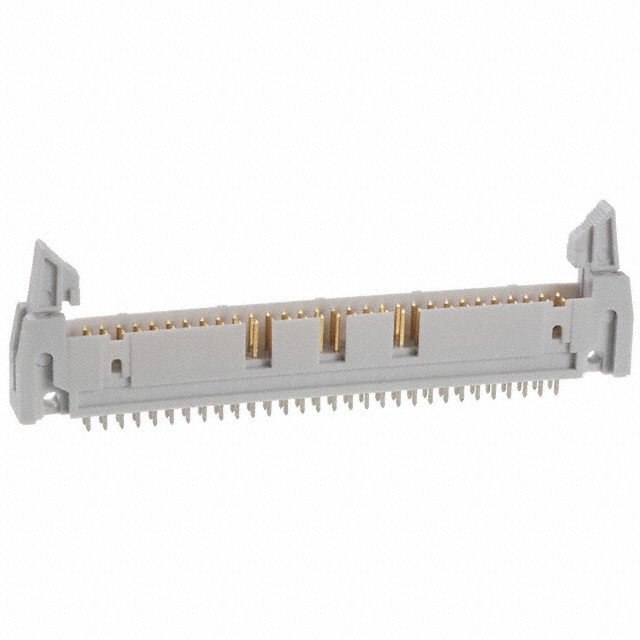

Assmann WSW Components AWH60G-0222-T-R	Keying Slot	60				2	Through Hole			Male Pin			Header		Latch Lock/Eject Hooks Short	3 A	17 mm	0.669 "	Square	Solder	0.1 in	2.54 mm	Tin	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Shrouded - 4 Wall	2.54 mm	0.1 in	UL94 V-0	-40 °C	105 ░C	Gold	Gray	All	Brass	0.13 in	3.3 mm	Board to Cable/Wire

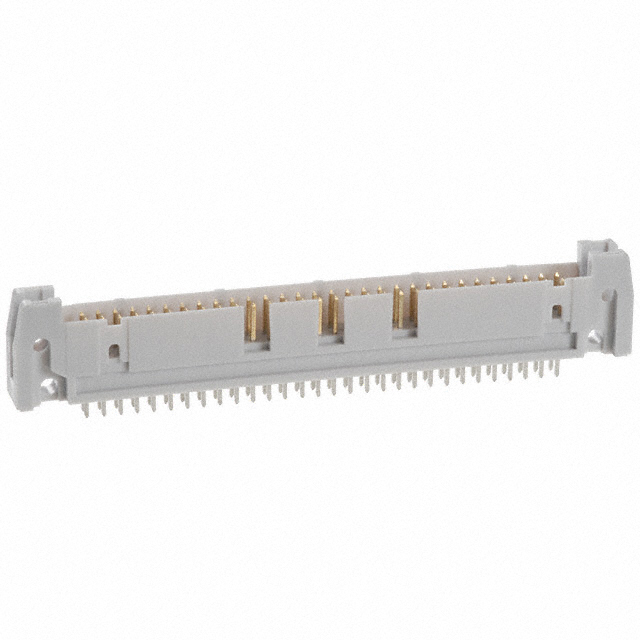

Assmann WSW Components AWH60G-0202-T-R	Keying Slot	60				2	Through Hole			Male Pin			Header		Push-Pull	3 A	17 mm	0.669 "	Square	Solder	0.1 in	2.54 mm	Tin	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Shrouded - 4 Wall	2.54 mm	0.1 in	UL94 V-0	-40 °C	105 ░C	Gold	Gray	All	Brass	0.13 in	3.3 mm	Board to Cable/Wire
