LVS1-04 Series

Catalog

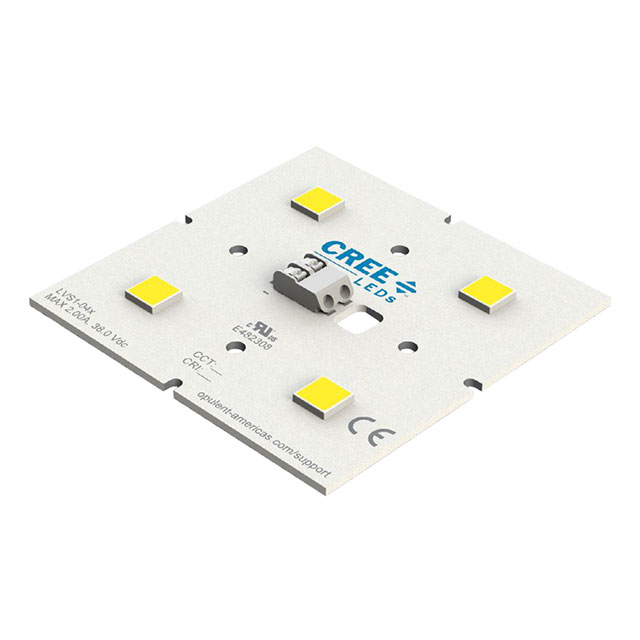

LED MOD MHD-G WARM WHT SQ 3000K

Part	Lens Type	Temperature - Test	Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Color	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	CCT (K)	Current - Max [Max]	Type	Configuration	Height [z]
New Energy LVS1-04C05-3090-00	Flat	85 °C	350 mA	34.2 V	70 mm	70 mm	90	Warm White	2670 lm	111 lm/W	3-Step MacAdam Ellipse	3000 K	2 A	LED Module	Square	1.52 mm
New Energy LVS1-04C05-4080-00	Flat	85 °C	350 mA	34.2 V	70 mm	70 mm	80	Neutral White	3070 lm	128 lm/W	3-Step MacAdam Ellipse	4000 K	2 A	LED Module	Square	1.52 mm
New Energy LVS1-04C05-5770-00	Flat	85 °C	350 mA	34.2 V	70 mm	70 mm	70	Cool White	3537 lm	148 lm/W		5700 K	2 A	LED Module	Square	1.52 mm
New Energy LVS1-04C05-2790-00	Flat	85 °C	350 mA	34.2 V	70 mm	70 mm	90	Warm White	2492 lm	104 lm/W	3-Step MacAdam Ellipse	2700 K	2 A	LED Module	Square
New Energy LVS1-04C05-4070-00	Flat	85 °C	350 mA	34.2 V	70 mm	70 mm	70	Neutral White	3304 lm	138 lm/W		4000 K	2 A	LED Module	Square

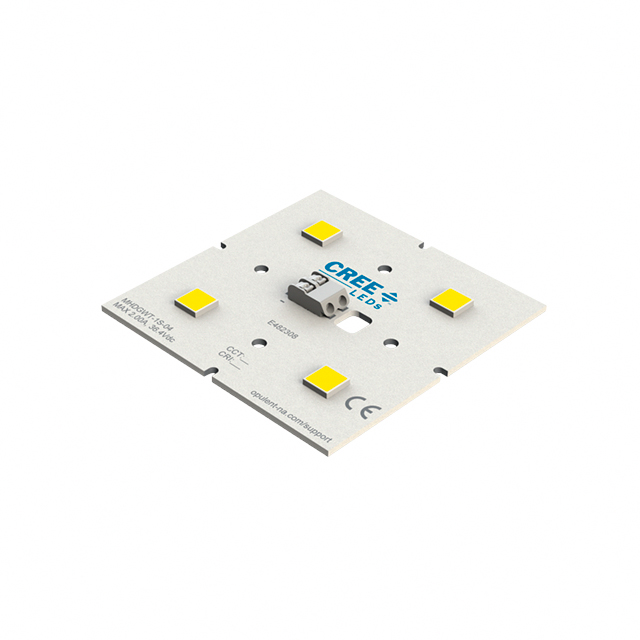

New Energy LVS1-04C05-5070-00	Flat	85 °C	350 mA	34.2 V	70 mm	70 mm	70	Cool White	3537 lm	148 lm/W	5-Step MacAdam Ellipse	5000 K	2 A	LED Module	Square
New Energy LVS1-04C05-2780-00	Flat	85 °C	350 mA	34.2 V	70 mm	70 mm	80	Warm White	2870 lm	120 lm/W	3-Step MacAdam Ellipse	2700 K	2 A	LED Module	Square	1.52 mm
