T41424 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

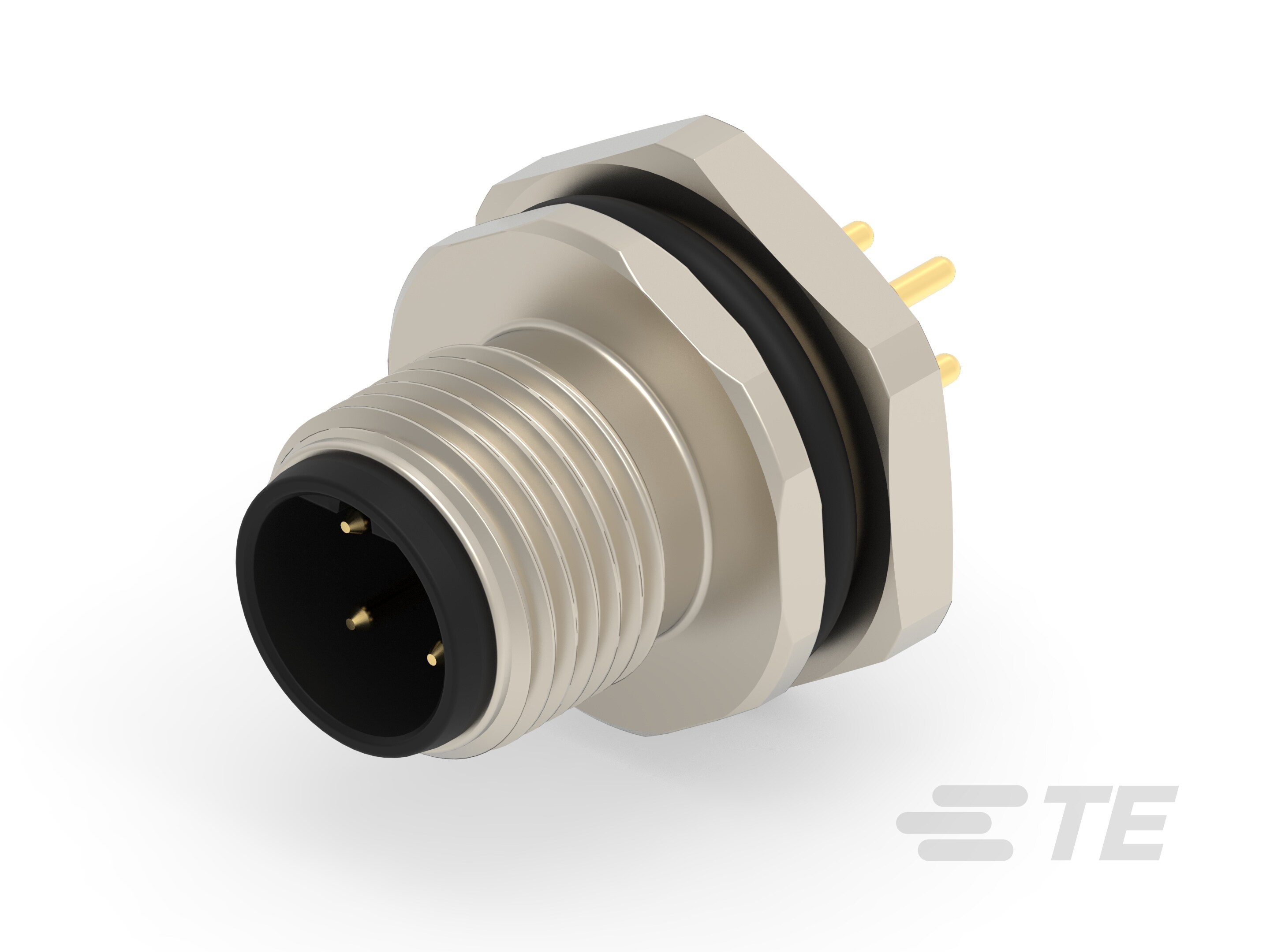

CIRCULAR METRIC CONNECTORS M12,FRONT MOUNTING MALE,B CODE,4P
| Part | Applications | Insert Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Termination | Shielding | Shell Size - Insert | Contact Finish - Mating | Color | Voltage Rating | Shell Material | Fastening Type | Connector Type | Ingress Protection | Orientation | Mounting Type | Mounting Feature | Primary Material | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Industrial | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.076 µm | 3 µin | 4 | Solder | Unshielded | M12-4 | Gold | Silver | 250 V | Copper Alloy | Threaded | Receptacle Male Pins | IP67 - Dust Tight Waterproof | B | Panel Mount Through Hole | Bulkhead - Front Side Nut | Metal | Nickel | 85 °C | -40 C | 4 A | UL94 V-0 |
