TMD1T Series

Catalog

SWITCH TOGGLE DPDT 3A 120V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Circuit	Actuator Length [x]	Switch Function	Current Rating (Amps)	Illumination	Voltage Rating - AC	Bushing Thread	Mounting Type	Features	Voltage Rating - DC	Actuator Type	Termination Style

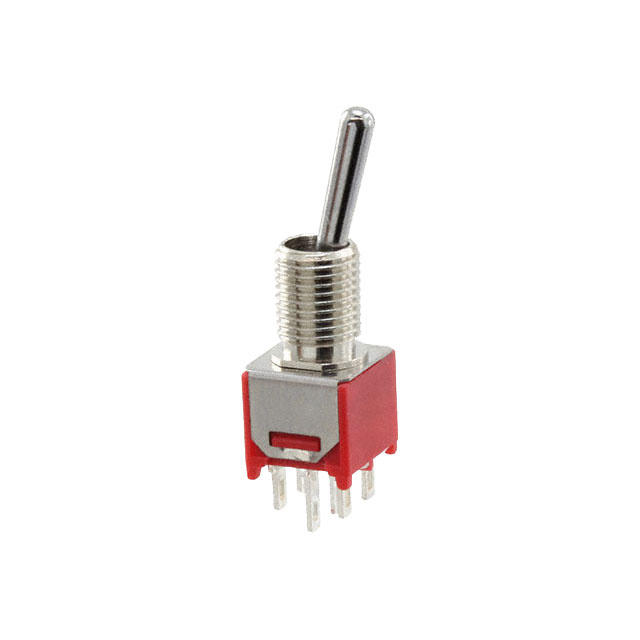

TE Connectivity AMP Connectors TMD1T4B5M1QE	85 °C	-30 ░C	0.25 in	DPDT	10.41 mm	On-On	3 A	Non-Illuminated	120 V	1/4-40	Panel Mount	Process Sealed	28 V	Standard Round	Solder Lug
TE Connectivity AMP Connectors TMD1T4B5M2RE	85 °C	-30 ░C	0.25 in	DPDT	10.41 mm	On-On	0.4 VA	Non-Illuminated	20 V	1/4-40	Panel Mount	Process Sealed	20 V	Standard Round	PC Pin

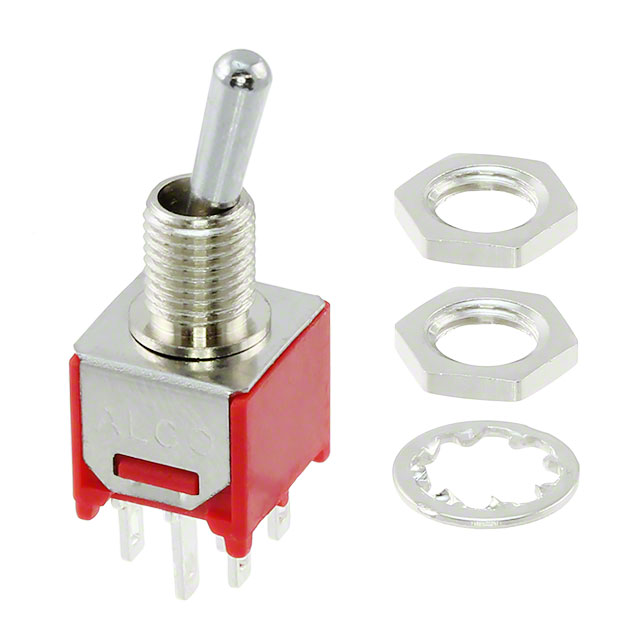

TE Connectivity AMP Connectors TMD1T3B1M1QE	85 °C	-30 ░C	4.95 mm	DPDT		On-On	3 A	Non-Illuminated	120 V	10-48	Panel Mount	Process Sealed	28 V	Standard Round	Solder Lug
