RUMC22 Series

Catalog

INDUSTRIAL RELAYS RELAY 2CO CYL PIN 10A@250V 24VDC COIL LED+TEST

Part	Coil Resistance	Switching Voltage [Max]	Release Time	Load - Max Switching	Coil Current	Mounting Type	Features	Contact Form	Relay Type	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Operate Time	Coil Type	Coil Voltage	Termination Style	Must Operate Voltage	Approval Agency	Contact Rating (Current)

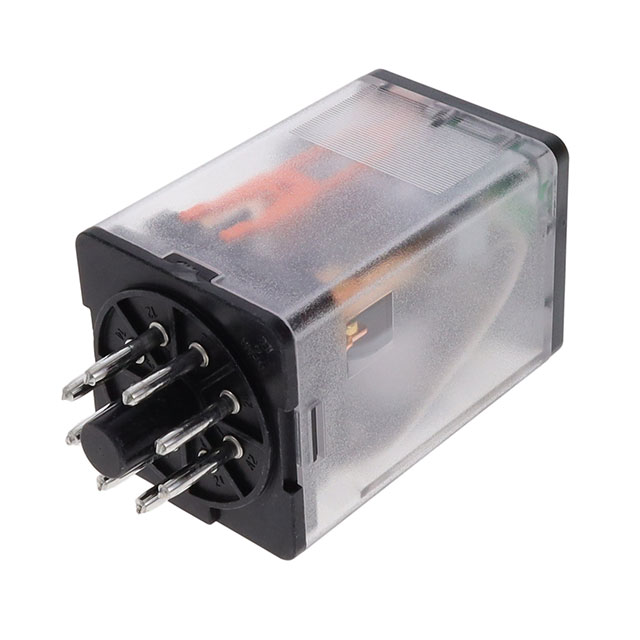

SCHNEIDER ELECTRIC RUMC22BD	470 Ohms	28 VDC 250 VAC	20 ms	280 W 2500 VA	51.1 mA	Socketable	Lighted Indicator Test Button	DPDT (2 Form C)	General Purpose	2.4 VDC	55 °C	-40 C	Silver Nickel (AgNi)	20 ms	Non Latching	24 VDC	Plug In	19.2 VDC	CSA EAC UL	10 A
SCHNEIDER ELECTRIC RUMC22JD	120 Ohms	28 VDC 250 VAC	20 ms	280 W 2500 VA	0.1 A	Socketable	Lighted Indicator Test Button	DPDT (2 Form C)	General Purpose	1.2 VDC	55 °C	-40 C	Silver Nickel (AgNi)	20 ms	Non Latching	12 VDC	Plug In	9.6 VDC	CSA EAC UL	10 A
SCHNEIDER ELECTRIC RUMC22ED		28 VDC 250 VAC	20 ms	280 W 2500 VA	26.7 mA	Socketable	Lighted Indicator Test Button	DPDT (2 Form C)	General Purpose	4.8 VDC	55 °C	-40 C	Silver Nickel (AgNi)	20 ms	Non Latching	48 VDC	Plug In	38.4 VDC	CSA EAC UL	10 A
