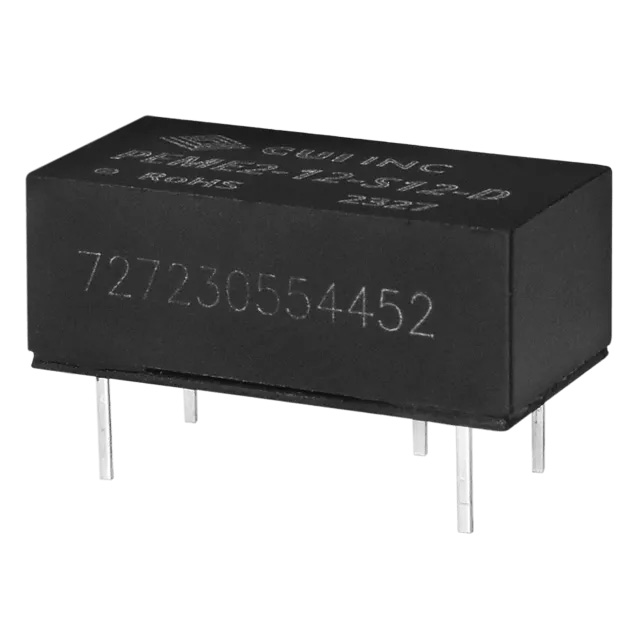

PEME2-D Series
Manufacturer: CUI Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 12 VDC, A, 2 W, 21.6-26.4 VDC INPUT RANG
| Part | Voltage - Input (Min) [Min] | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Type | Package / Case | Voltage - Output 1 | Current - Output (Max) [Max] | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Power (Watts) | Efficiency | Voltage - Isolation | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 21.6 V | 62368-1 | 105 C | -40 °C | Isolated Module | 14-DIP Module 5 Leads | 12 V | 167 mA | ITE (Commercial) | 16.4 V | 1 | 0.32 " | 8.2 mm | 0.8 " | 20.3 mm | 10.2 mm | 0.4 " | Through Hole | 2.004 W | 84 % | 3000 V | |||
 CUI Inc. | 4.5 V | 62368-1 | 105 C | -40 °C | Isolated Module | 14-DIP Module 6 Leads | 15 V | ITE (Commercial) | 5.5 V | 2 | 0.32 " | 8.2 mm | 0.8 " | 20.3 mm | 10.2 mm | 0.4 " | Through Hole | 2.01 W | 86 % | 3000 V | -15 V | 67 mA | 67 mA |
