DRB30 Series

Catalog

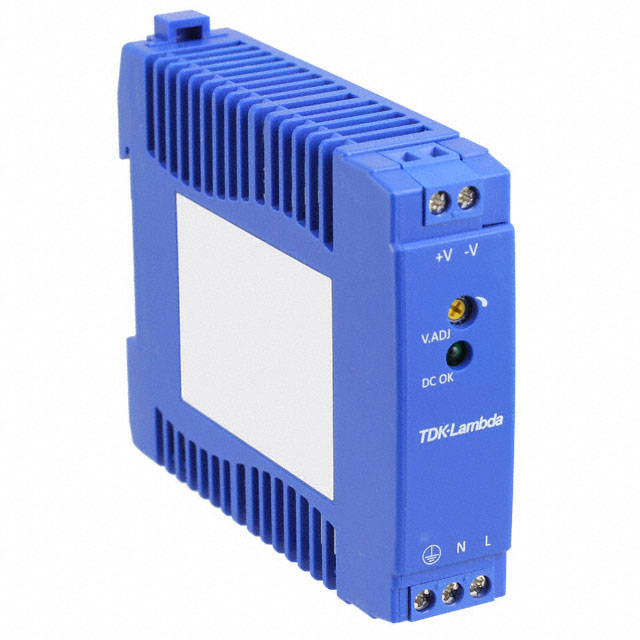

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 30 W, 24 VDC, 1.25 A

Part	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Applications	Power (Watts)	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Input Type	Approval Agency	Voltage - Output 1	Features	Efficiency	DC Voltage - Input (Max) [Max]
TDK Corporation DRB30-24-1	264 VAC	85 VAC	70 °C	-20 °C	120 V	2.95 in	3.54 in	90 mm	21 mm	0.83 "	75 mm	Hazardous Locations Industrial ITE (Commercial)	30 Watts	1	3000 V	1.25 A	AC or DC	CE cULus cURus	24 V	Adjustable Output Universal Input	90 %	373 V
