LMX1214 Series

1:5 18GHz RF buffer and divider with auxiliary clock

Catalog

1:5 18GHz RF buffer and divider with auxiliary clock

Part	RF Type	Secondary Attributes [Max]	Secondary Attributes [Min]	Mounting Type	Supplier Device Package	Function	Frequency [Max]	Frequency [Min]	Package / Case

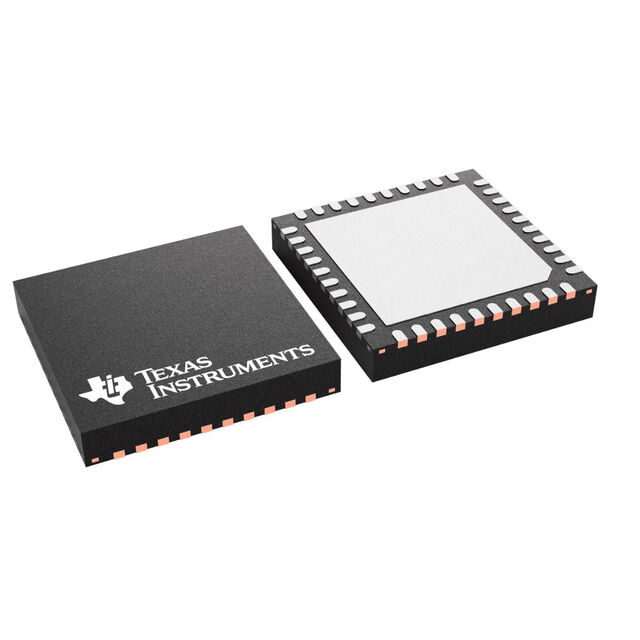

Texas Instruments LMX1214RHAT	Radar	2.6 V	2.4 V	Surface Mount Wettable Flank	40-VQFN (6x6)	Oscillator Buffer	16 GHz	300 MHz	40-VFQFN Exposed Pad
Texas Instruments LMX1214RHAR	Radar	2.6 V	2.4 V	Surface Mount Wettable Flank	40-VQFN (6x6)	LO Buffers/Splitters	16 GHz	300 MHz	40-VFQFN Exposed Pad

Catalog

1:5 18GHz RF buffer and divider with auxiliary clock

Key Features

• Clock buffer for 300MHz to 18GHz frequencyDivider output frequency supported up to 8GHzUltra-Low NoiseNoise floor of –161dBc/Hz at 6GHz output36fs additive jitter (100Hz to fCLK) at 6GHz output5fs additive jitter (100Hz - 100MHz)4 high-frequency clocks outputwith shared divider by 1 (Bypass), 2, 3, 4, 5, 6, 7, and 81ps typical output to output skewSupport pin mode options for outputs enable and divider /2, /3 and /4 values setAUXCLK outputOn separate divide bank1, 2, 4 pre-divider1 (bypass), 2, …, 1023 post divider8 programmable output power levelsSYNC feature to all divides2.5V operating voltage–40ºC to +85ºC operating temperatureClock buffer for 300MHz to 18GHz frequencyDivider output frequency supported up to 8GHzUltra-Low NoiseNoise floor of –161dBc/Hz at 6GHz output36fs additive jitter (100Hz to fCLK) at 6GHz output5fs additive jitter (100Hz - 100MHz)4 high-frequency clocks outputwith shared divider by 1 (Bypass), 2, 3, 4, 5, 6, 7, and 81ps typical output to output skewSupport pin mode options for outputs enable and divider /2, /3 and /4 values setAUXCLK outputOn separate divide bank1, 2, 4 pre-divider1 (bypass), 2, …, 1023 post divider8 programmable output power levelsSYNC feature to all divides2.5V operating voltage–40ºC to +85ºC operating temperature

Description

The LMX1214 features high output frequency, ultra-low noise floor, and very low skew clocks distribution. The device has four high-frequency output clocks and a lower frequency auxiliary clock output. The device supports both buffer and divide mode for the high-frequency clocks. This device can distribute the mutlichannel, low skew, ultra-low noise local oscillator signals to multiple mixers. The LMX1214 features high output frequency, ultra-low noise floor, and very low skew clocks distribution. The device has four high-frequency output clocks and a lower frequency auxiliary clock output. The device supports both buffer and divide mode for the high-frequency clocks. This device can distribute the mutlichannel, low skew, ultra-low noise local oscillator signals to multiple mixers.
