25162 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

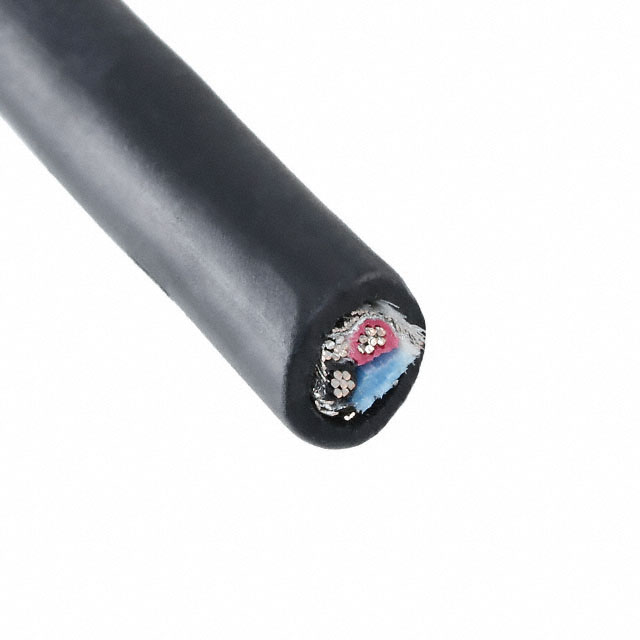

CABLE 2COND 18AWG BLK SHLD FEET
| Part | Spool Size [x] | Spool Size [x] | Shield Coverage | Shield Material | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Number of Conductors | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket Color | Conductor Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Shield Type | Conductor Insulation | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 304.8 m | 1000 ft | 70 % 100 % | Copper Tinned Suprashield® | 300 VDC | -30 ░C | 90 °C | Polyurethane (PU) | 2 | Enter Number of Feet in Order Quantity | 0.813 mm | 0.032 in | Multi-Conductor | Black | Copper Tinned | ISO 10993 UL Style 20668 | 16 | 30 AWG | 0.254 in | 6.45 mm | Biological Compatibility Drain Wire Rip Cord | Braid Foil | Poly-Vinyl Chloride (PVC) | 18 AWG |
