395-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

...

Part	Card Type	Pitch [x]	Pitch [x]	Material - Insulation	Termination	Contact Finish	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Contact Type	Number of Positions/Bay/Row [custom]	Number of Rows	Flange Feature	Color	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Features	Flange Feature [diameter]	Flange Feature [diameter]

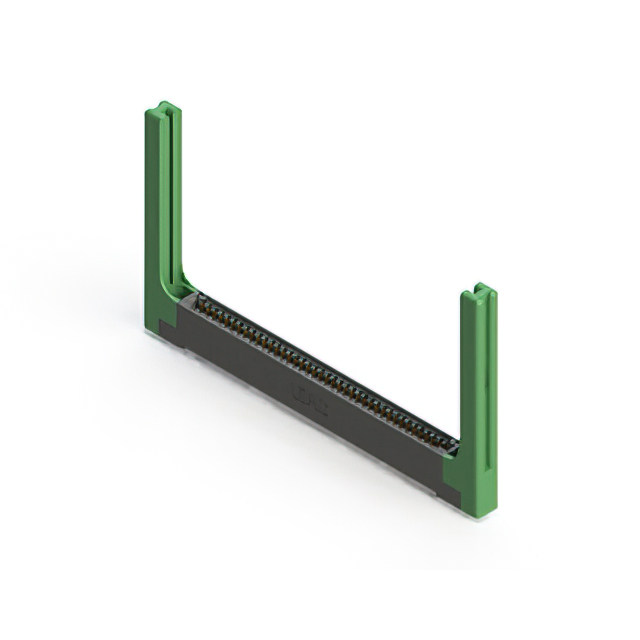

EDAC Inc. 395-080-560-258	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2
EDAC Inc. 395-080-560-807	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	M3 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender

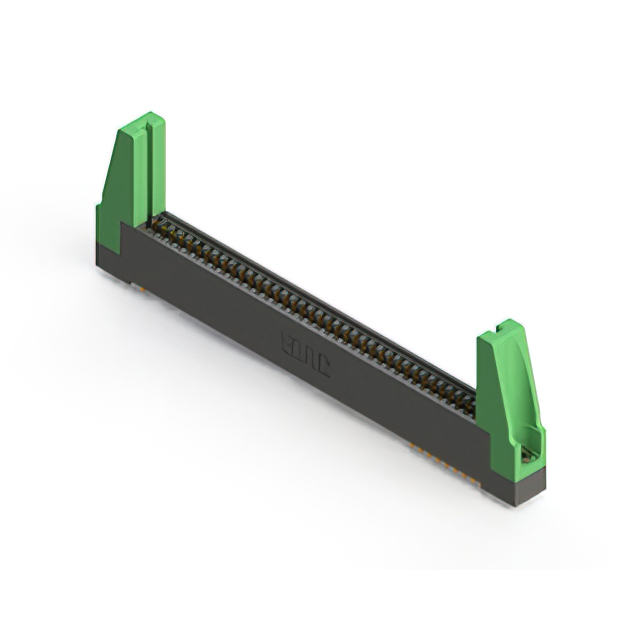

EDAC Inc. 395-080-523-288	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2	Card Guides

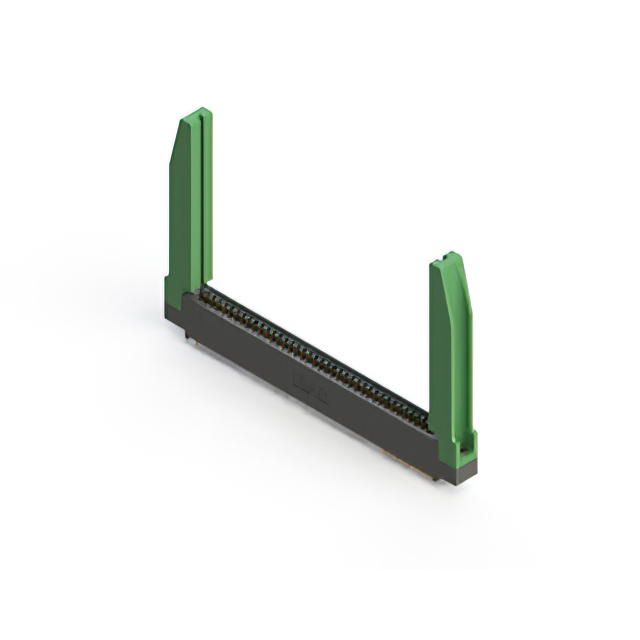

EDAC Inc. 395-080-541-578	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Wire Wrap	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2	Card Guides
EDAC Inc. 395-080-525-804	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	Top Mount Opening Unthreaded	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2		0.156 in	3.96 mm

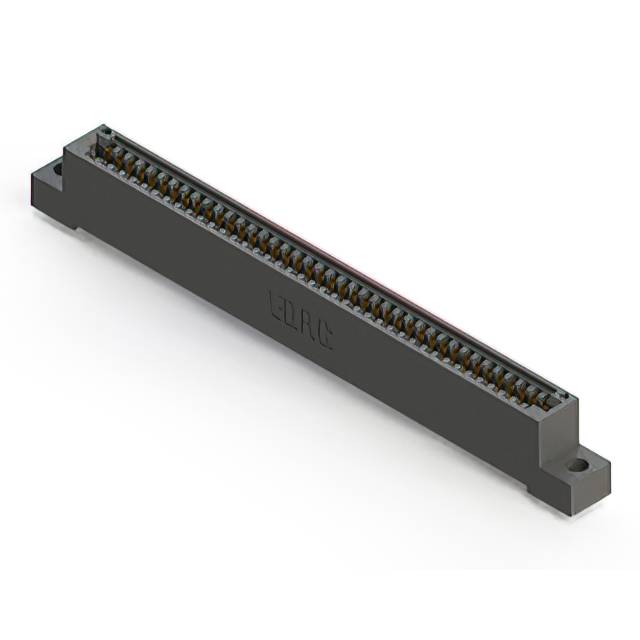

EDAC Inc. 395-080-556-204	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	Flush Mount Top Opening Unthreaded	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender	0.156 in	3.96 mm
EDAC Inc. 395-080-542-578	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Wire Wrap	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2	Card Guides

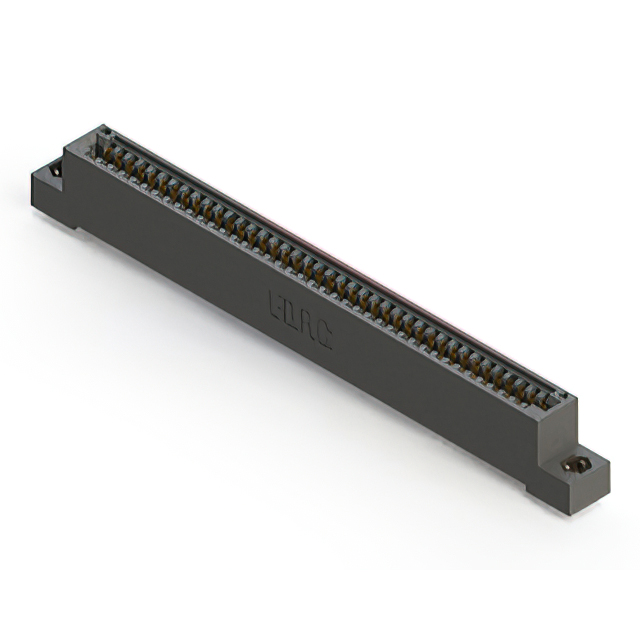

EDAC Inc. 395-080-556-208	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender

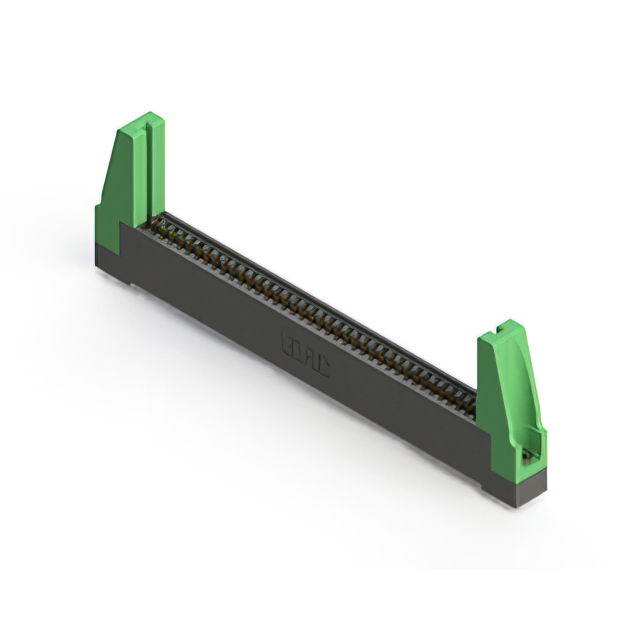

EDAC Inc. 395-080-560-288	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2
EDAC Inc. 395-080-556-507	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	M3 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender
