IM240M6 Series

Manufacturer: INFINEON

Catalog

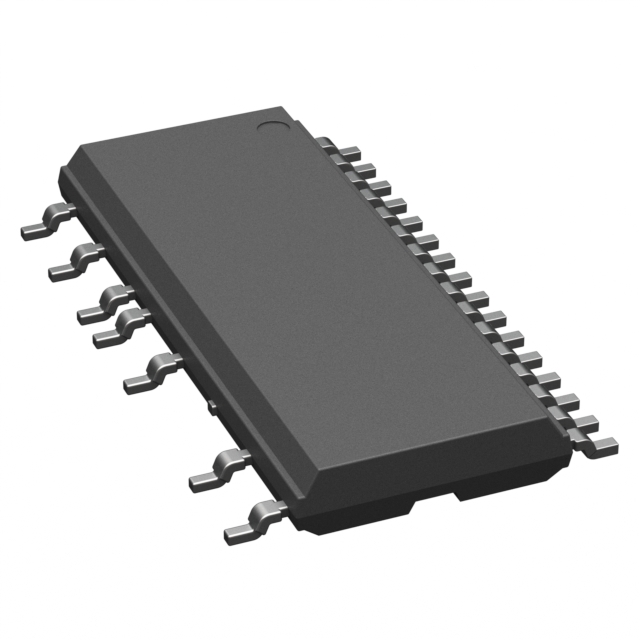

MODULE IPM 3PHASE SOP23

Part	Voltage - Isolation	Package / Case	Mounting Type	Voltage	Configuration	Current	Type	Input	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Package / Case
INFINEON IM240M6Z1BALSA1	1900 Vrms	23-PowerSMD Module Gull Wing	Surface Mount	600 V	3 Phase Inverter	4 A	IGBT
INFINEON IM240M6Z1BALMA1		23-PowerSMD Module Gull Wing	Surface Mount		Three Phase Inverter			Standard	40 µA	8.9 W	23-SOP	125 °C	-40 C	600 V	2.6 V
INFINEON IM240M6Y2BAKMA1	1900 Vrms	23-PowerDIP Module	Through Hole	600 V		4 A	IGBT									0.748 in 19 mm
