P05N Series

Catalog

CONN SOCKET 30POS SMD GOLD

Part	Pitch	Pitch	Number of Positions	Mounting Type	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Number of Rows [custom]	Connector Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
3M Electronic Specialty P05N-030ST-A-G	0.02 "	0.5 mm	30	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin	0.093 in	2.35 mm	2	Socket Outer Shroud Contacts	3 mm
3M Electronic Specialty P05N-060ST-A-G	0.02 "	0.5 mm	60	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin	0.093 in	2.35 mm	2	Socket Outer Shroud Contacts	3 mm
3M Electronic Specialty P05N-020PT-A-G	0.02 "	0.5 mm	20	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin			2		3 mm	0.094 in	2.4 mm

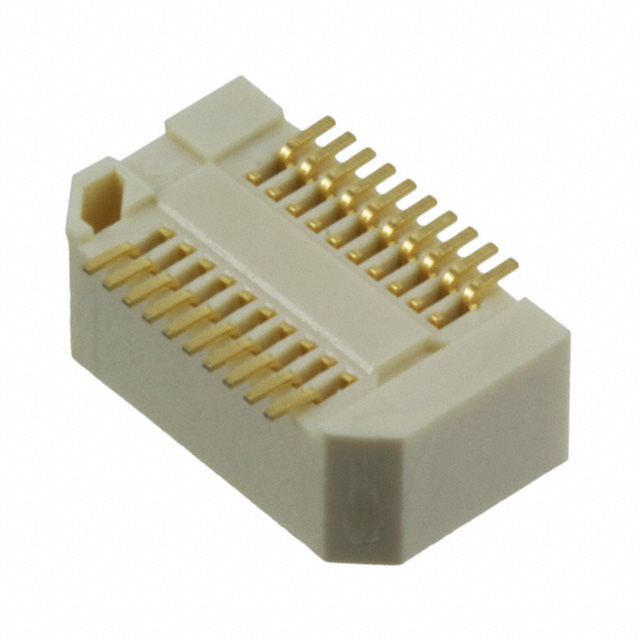

3M Electronic Specialty P05N-020ST-B-G	0.02 "	0.5 mm	20	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin			2	Socket Outer Shroud Contacts	4 mm 5 mm 6 mm	0.12 in	3.05 mm
3M Electronic Specialty P05N-020ST-A-G	0.02 "	0.5 mm	20	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin	0.093 in	2.35 mm	2	Socket Outer Shroud Contacts	3 mm
3M Electronic Specialty P05N-080ST-A-G	0.02 "	0.5 mm	80	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin	0.093 in	2.35 mm	2	Socket Outer Shroud Contacts	3 mm
3M Electronic Specialty P05N-100PT-B-G	0.02 "	0.5 mm	100	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin			2		4 mm	0.13 in	3.3 mm
3M Electronic Specialty P05N-040ST-A-G	0.02 "	0.5 mm	40	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin	0.093 in	2.35 mm	2	Socket Outer Shroud Contacts	3 mm
3M Electronic Specialty P05N-080PT-A-G	0.02 "	0.5 mm	80	Surface Mount	Gold	Solder Retention	0.203 çm	8 µin			2		3 mm	0.094 in	2.4 mm
