CC10-1203 Series

Catalog

DC DC CONVERTER 3.3V 10W

Part	Current - Output (Max) [Max]	Control Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Number of Outputs	Type	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
TDK Corporation CC10-1203SR-E	2.5 A	Active Low Enable	35.6 mm	1.4 in	22.6 mm	0.89 in	8.8 mm	0.35 in	Surface Mount	1	Isolated Module	ITE (Commercial)	18 V	10 W	3.3 V	500 V	9 V	7-SMD Module	85 °C	-40 C

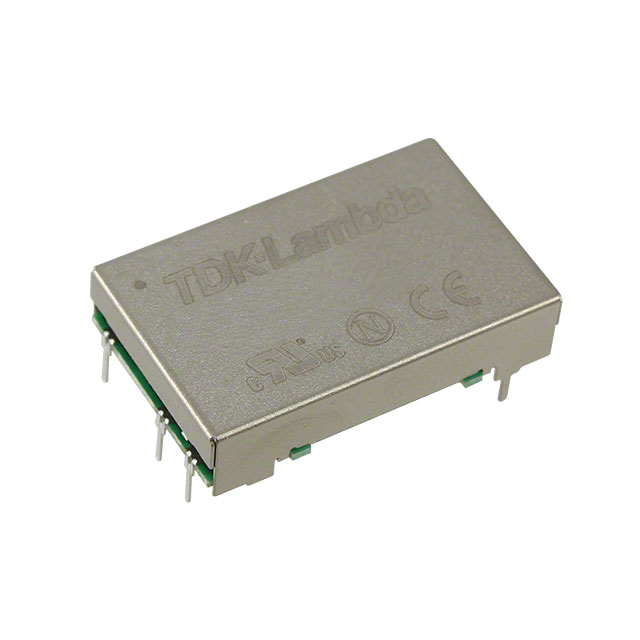

TDK Corporation CC10-1203SF-E	2.5 A	Active Low Enable	35.6 mm	1.4 in	22.6 mm	0.89 in	8.5 mm	0.33 in	Through Hole	1	Isolated Module	ITE (Commercial)	18 V	10 W	3.3 V	500 V	9 V	7-DIP Module	85 °C	-40 C
