F18 Series

Discrete Semiconductor Modules Power Module

Manufacturer: Sensata-Crydom

Catalog

Discrete Semiconductor Modules Power Module

Catalog

Discrete Semiconductor Modules Power Module

Part	Speed [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Structure	Number of SCRs, Diodes	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io) (per Diode)	Diode Configuration

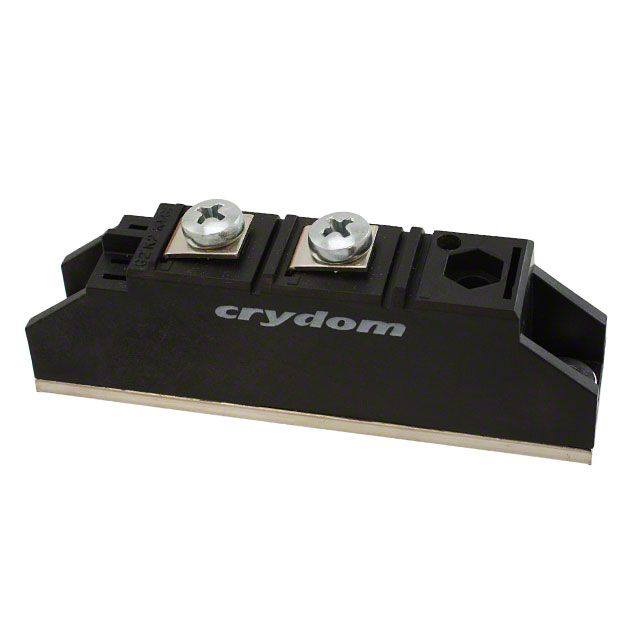

Sensata-Crydom F1892D600	200 mA 500 ns	90 A	600 V	Module	Chassis Mount	1.4 V	Module	Standard
Sensata-Crydom F1842SD1000					Chassis Mount		Module		1 kV	1000 A	150 mA	-40 C	125 °C	Series Connection - All SCRs	2 SCRs
Sensata-Crydom F1842CAD600	200 mA 500 ns		600 V	Module	Chassis Mount	1.4 V	Module	Standard								-40 °C	125 °C	40 A (DC)	1 Pair Common Anode
Sensata-Crydom F1857D400	200 mA 500 ns	55 A	400 V	Module	Chassis Mount	1.4 V	Module	Standard
Sensata-Crydom F1827CAD1600	200 mA 500 ns			Module	Chassis Mount	1.55 V	Module	Standard								-40 °C	125 °C	25 A	1 Pair Common Anode

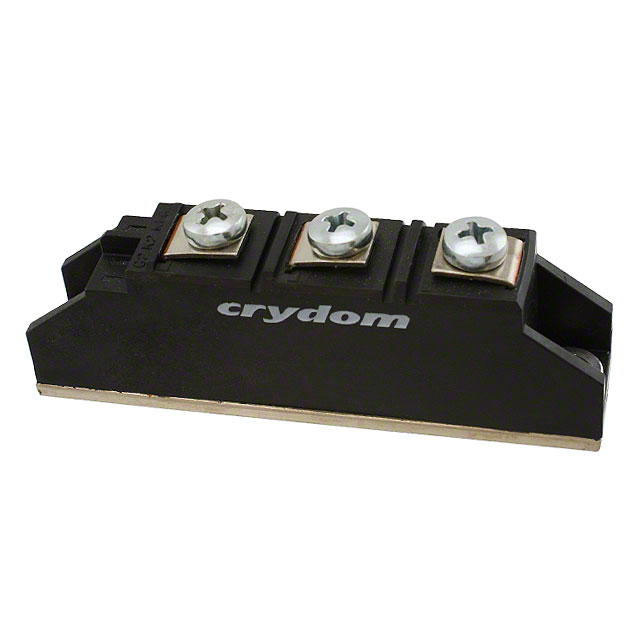

Sensata-Crydom F1857CCD600	200 mA 500 ns		600 V	Module	Chassis Mount	1.4 V	Module	Standard								-40 °C	125 °C	55 A	1 Pair Common Cathode
Sensata-Crydom F1892HD1200					Chassis Mount		Module		1.2 kV	1950 A	150 mA	-40 C	125 °C	Series Connection - SCR/Diode	1 Diode
Sensata-Crydom F1827CAD1200	200 mA 500 ns		1.2 kV	Module	Chassis Mount	1.55 V	Module	Standard								-40 °C	125 °C	25 A	1 Pair Common Anode
Sensata-Crydom F1842SDK1200					Chassis Mount		Module		1.2 kV	1000 A	150 mA	-40 C	125 °C	Series Connection - All SCRs	2 SCRs
